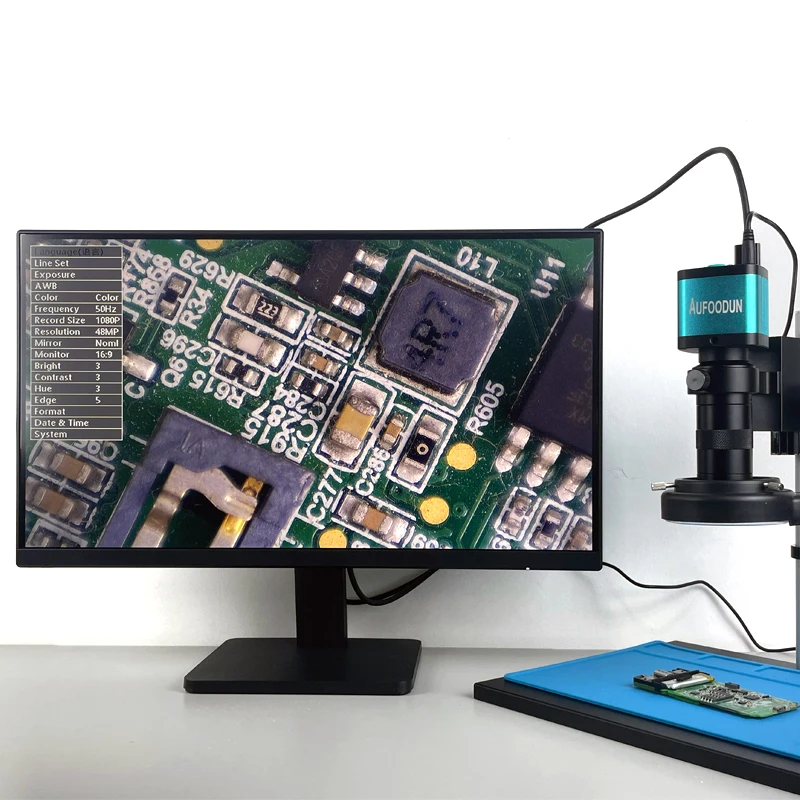

Custom CNC machining 4K 48MP HDMI USB Industrial Digital Video Microscope Camera Monocular 130X Zoom C-Mount Lens For PCB Phone Repair Soldering
Custom CNC machining 4K 48MP HDMI USB Industrial Digital Video Microscope Camera Monocular 130X Zoom C-Mount Lens For PCB Phone Repair Soldering
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.

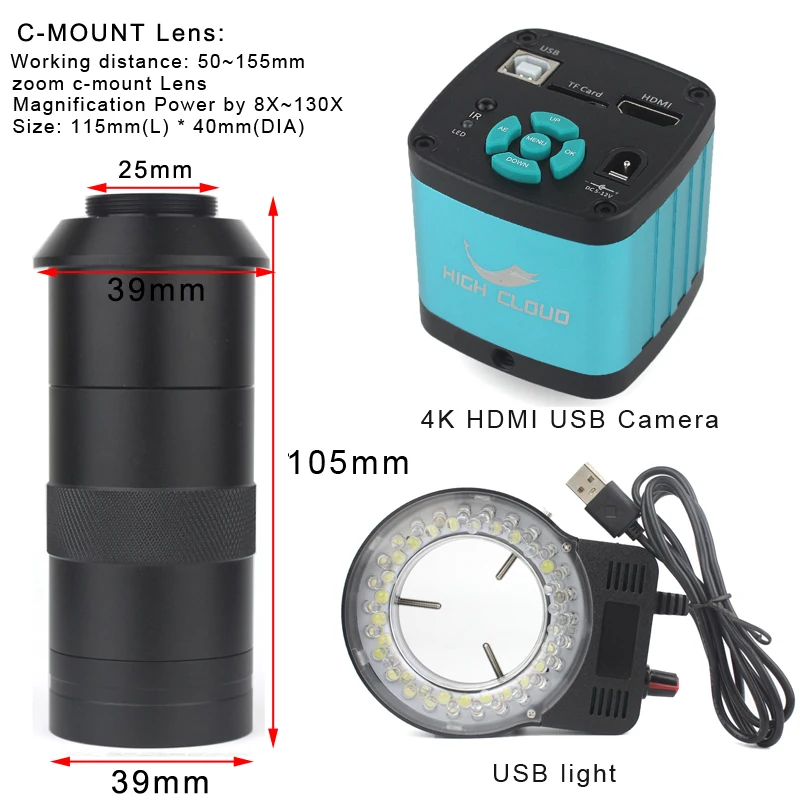

130X C-MOUNT Lens:
Working distance: 50~155mm
zoom c-mount Lens
Magnification Power by 8X~130X
Size: 115mm(L) * 40mm(DIA)
56 LED Adjustable Compact Microscope Ring Light:
Provides intense and focused shadow-free illumination
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)

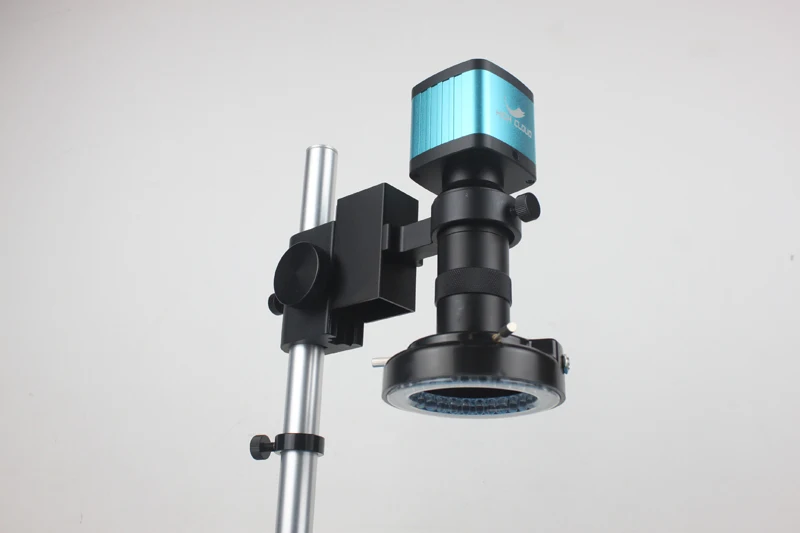

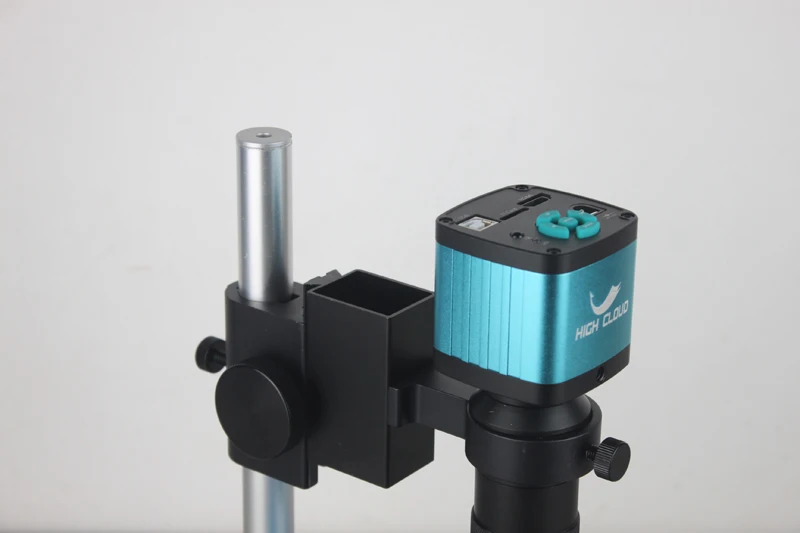

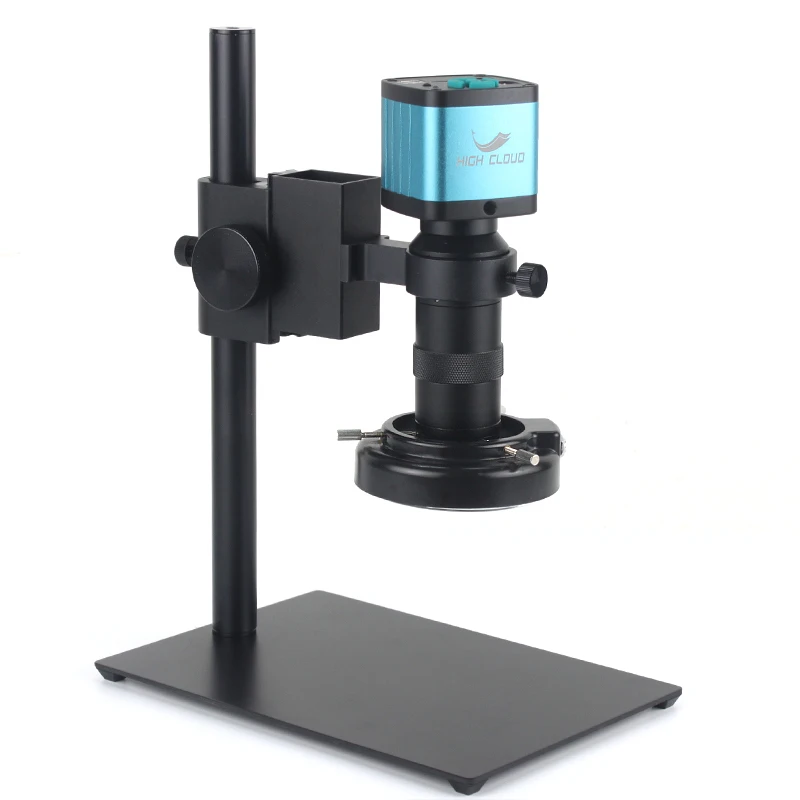

A set :include
1 x 130X C-mount Lens
1 x Camera Stand
1 x microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI cable
1 x LED Ring Light
B set :include
1 x 130X C-mount Lens
1 x microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI cable
1 x LED Ring Light
C set :include
1 x 130X C-mount Lens
1 x Camera Stand
1 x LED Ring Light
D set :include
1 x microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI cable
E set :include
1 x Camera Stand

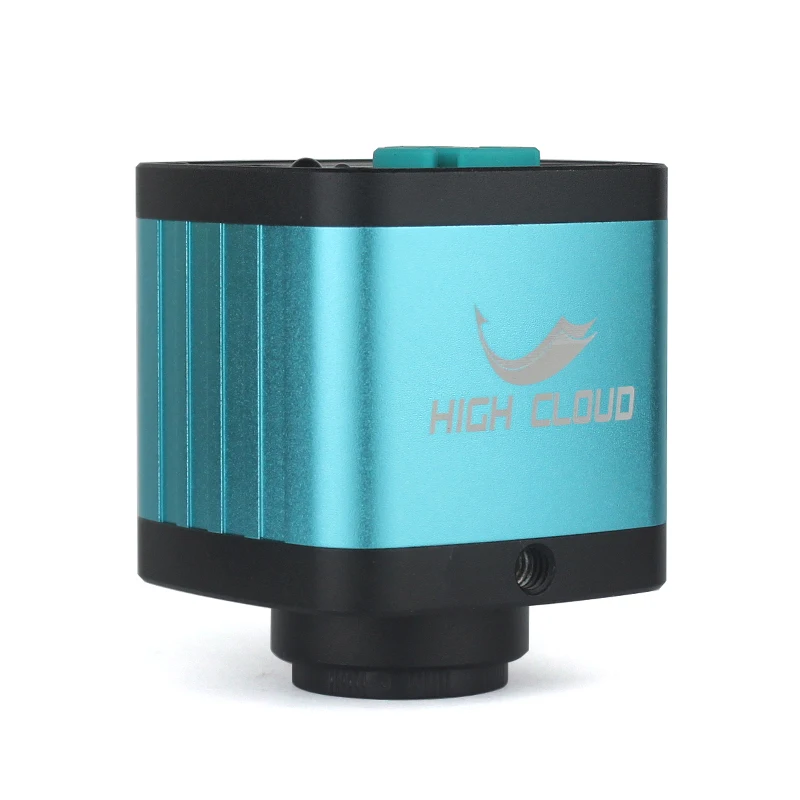

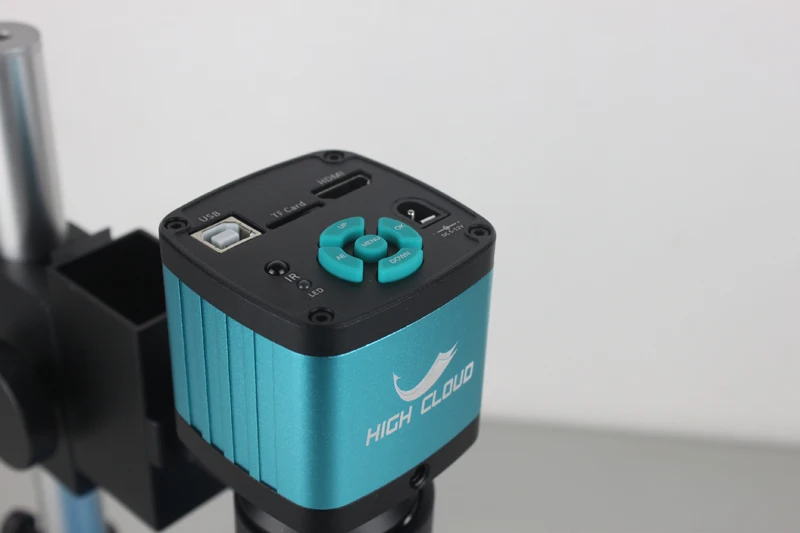

48MP 4K 60Fps HDMI USB
48 million pixel imported Panasonic CMOS image sensor;
Using 1/2.33 inch image sensor, Angle of view is wider than 1/3 inch;
HDMI 1080P 60 frame image output;
USB2.0 driver free output 1080P 30 frame image output;
4K video recording;
48 million photos, JPG format, photo size 4608x3456;
One-click freezing/thawing function;
48 megapixel photography and 1080P video recording;
Electronic zoom function;
Support manual/automatic exposure, exposure compensation value adjustment;
Support manual/automatic white balance, red, green, blue adjustable;
Provide 8 line drawing functions, line color, thickness, position adjustable;
Display/close center cross;
Support TF card storage, up to 64GB;
Support remote control operation, take photos without jitter image more clear;
Support Chinese and English menu language (default English);
Support shutdown setting parameters save;
Strong metal shell;

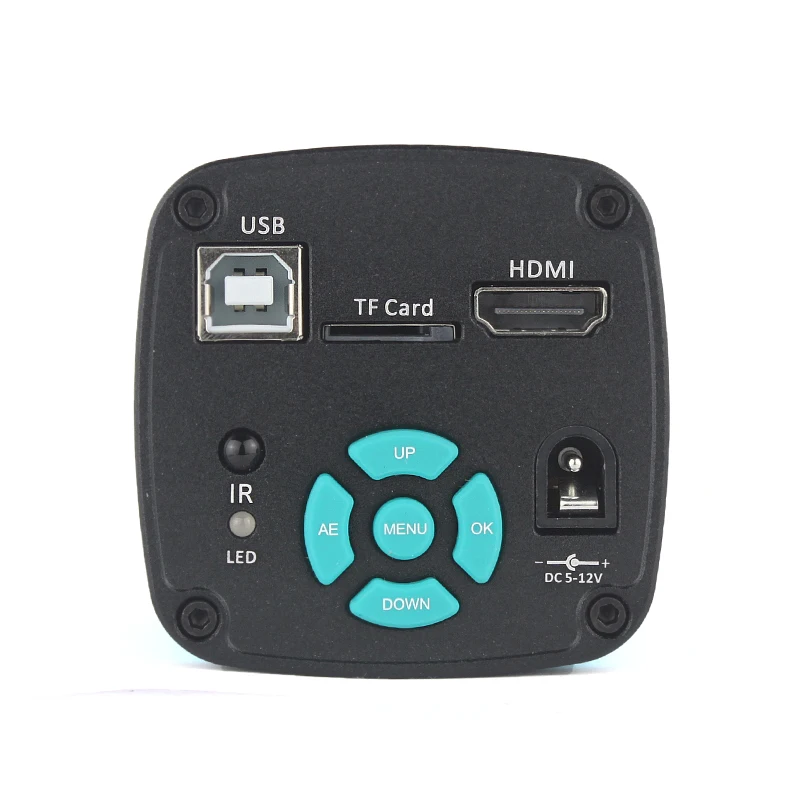

Camera specifications:
The sensor : 1/2.33 inch Panasonic 48 megapixel CMOS sensor
Pixel size : 1.335µm × 1.335µm
HDMI output : 1920*1080 60PFS
USB output : 1920*1080/30 1280*720/30 640*480/30 320*240/30 (MJPG)
Camera interface : C/CS
Exposure : Automatic/manual
Exposure compensation : Support
White balance : Automatic/manual, RGB adjustable
Storage : Supports a maximum of 64GB
Input voltage : Dc 5v-12v
line : Supports 8 straight lines with adjustable color, thickness and position
Center line : Support
Menu language : English/Chinese
Remote control : Support remote control operation
Net weight : 250g
Rough weight : 450g
Product size : 66*66*49mm
