Custom CNC machining 48MP 2K 1080P HDMI USB Digital Video Monocular Microscope Camera 130X Zoom C-Mount Lens For Phone PCB Soldering Repair Tools
Custom CNC machining 48MP 2K 1080P HDMI USB Digital Video Monocular Microscope Camera 130X Zoom C-Mount Lens For Phone PCB Soldering Repair Tools
Regular price
£121.60 GBP
Regular price
£131.60 GBP
Sale price
£121.60 GBP
Unit price
per
Taxes included.
Couldn't load pickup availability
We are cnc machining factory welcome customize products.
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.

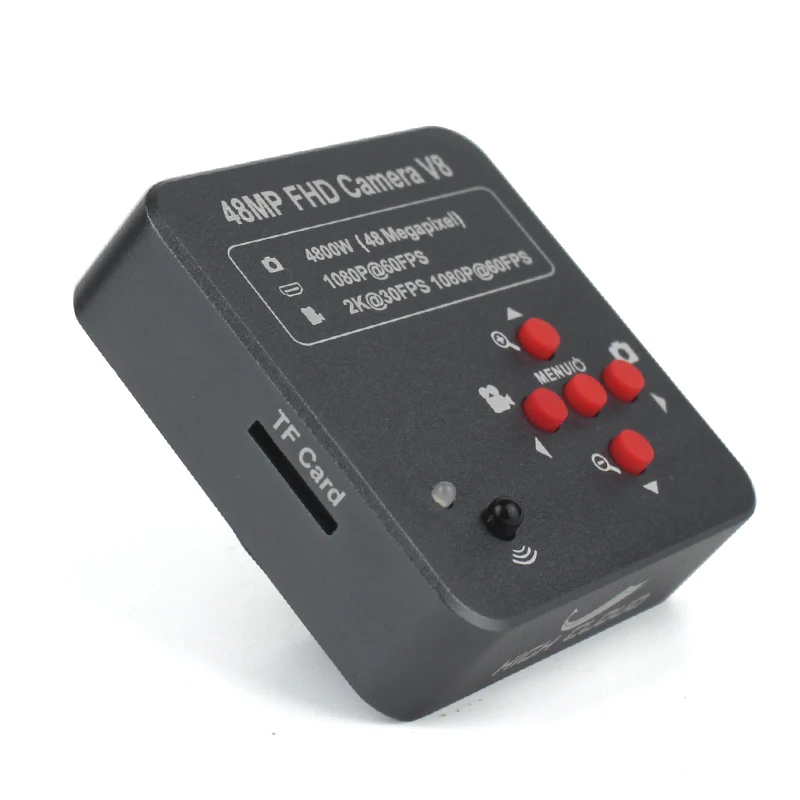

Specification:
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm

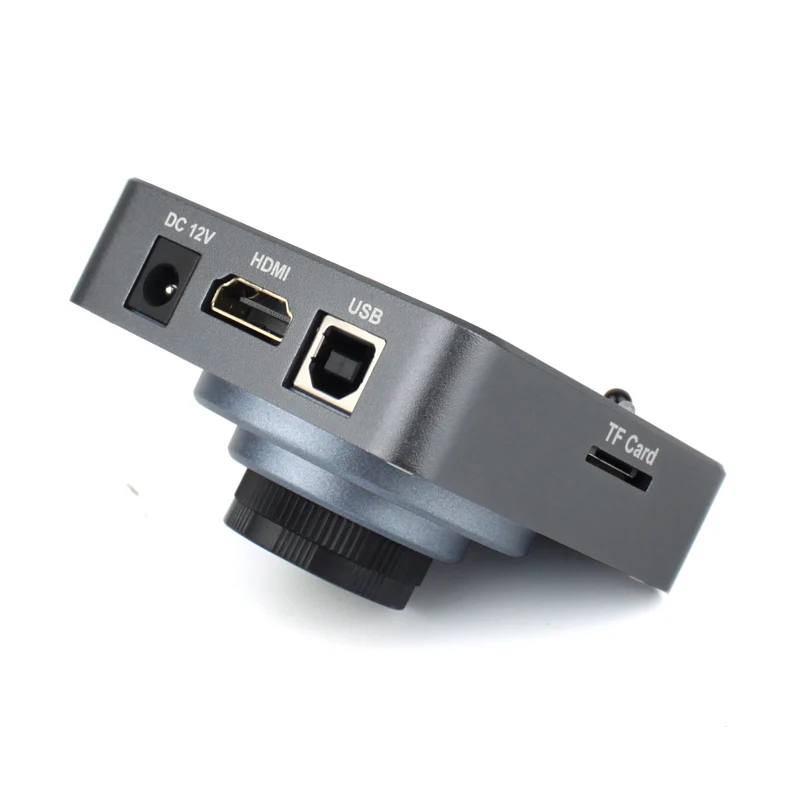

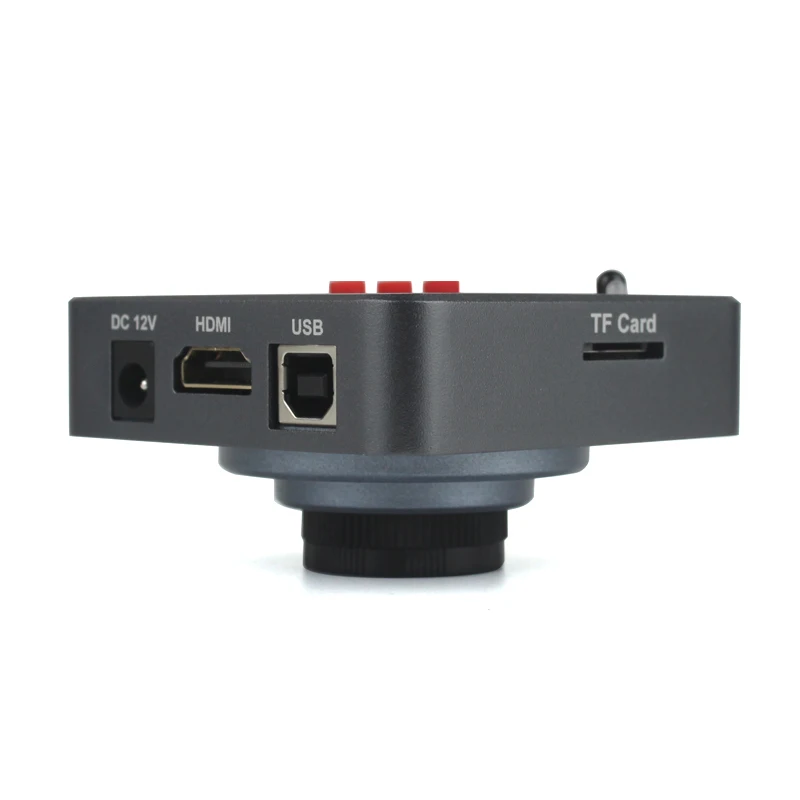

Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:48MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W 12V,0.12A

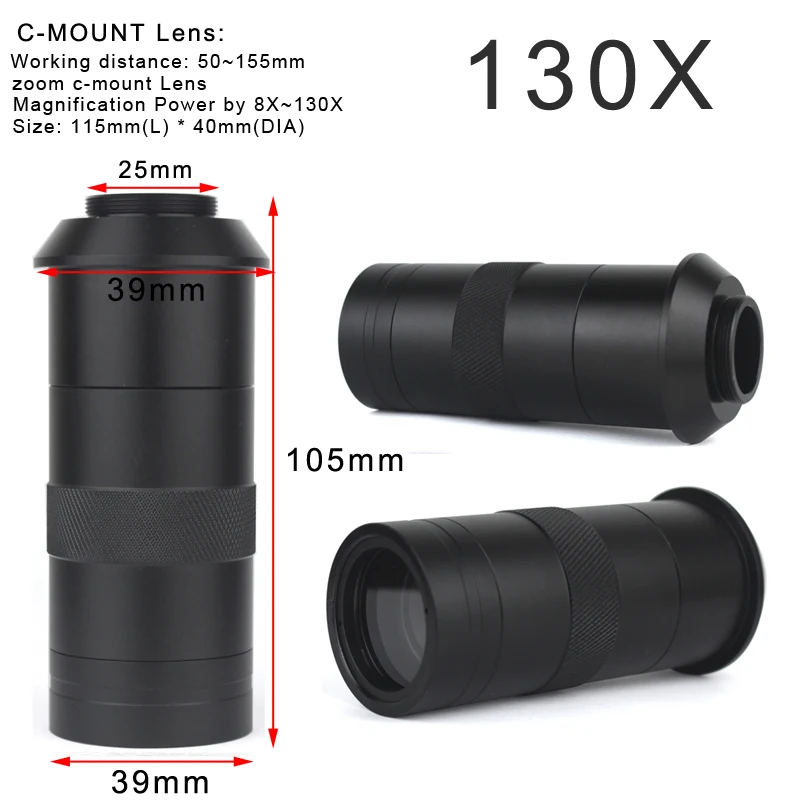

Lens interface:C/CS口
Net weight:180g
Gross weight:400g

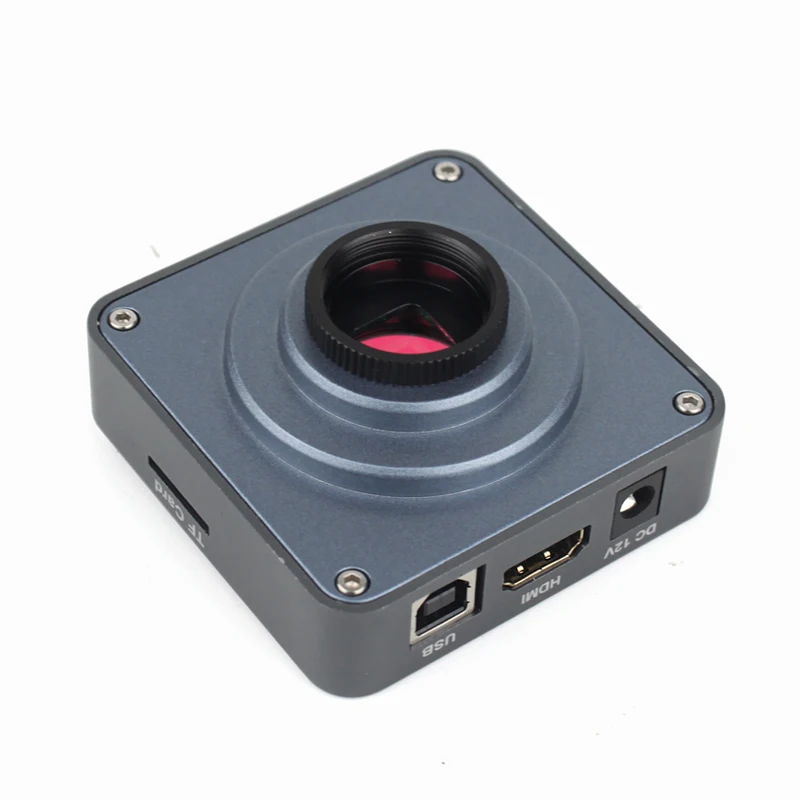

Camera size:74*74*35mm
Packaging size:160*100*80mm
Questions Solutions:
LCD no video or flicker
1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser
Note: Please refer to the color SKU picture

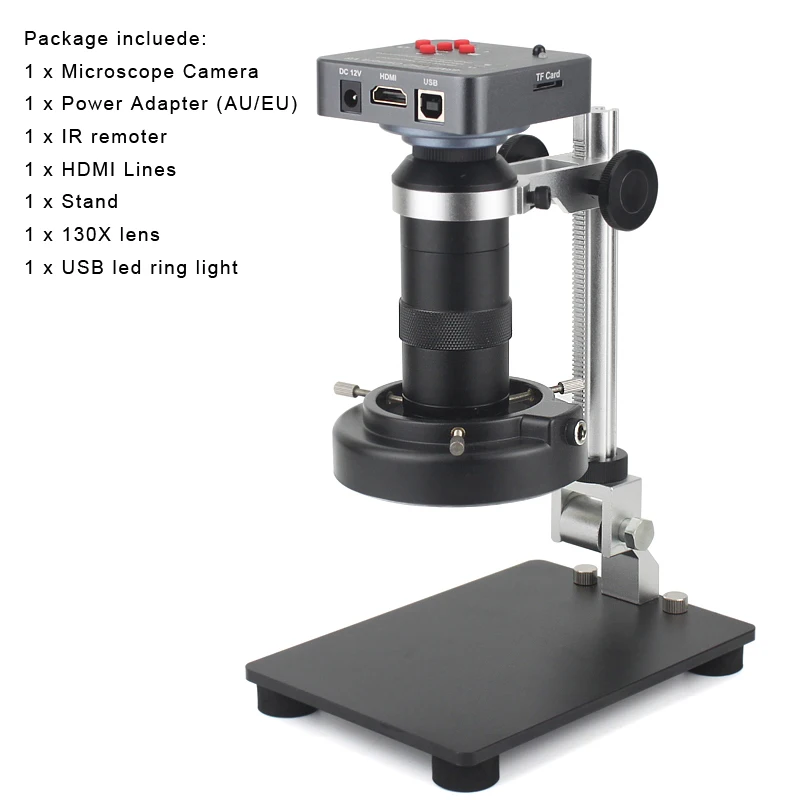

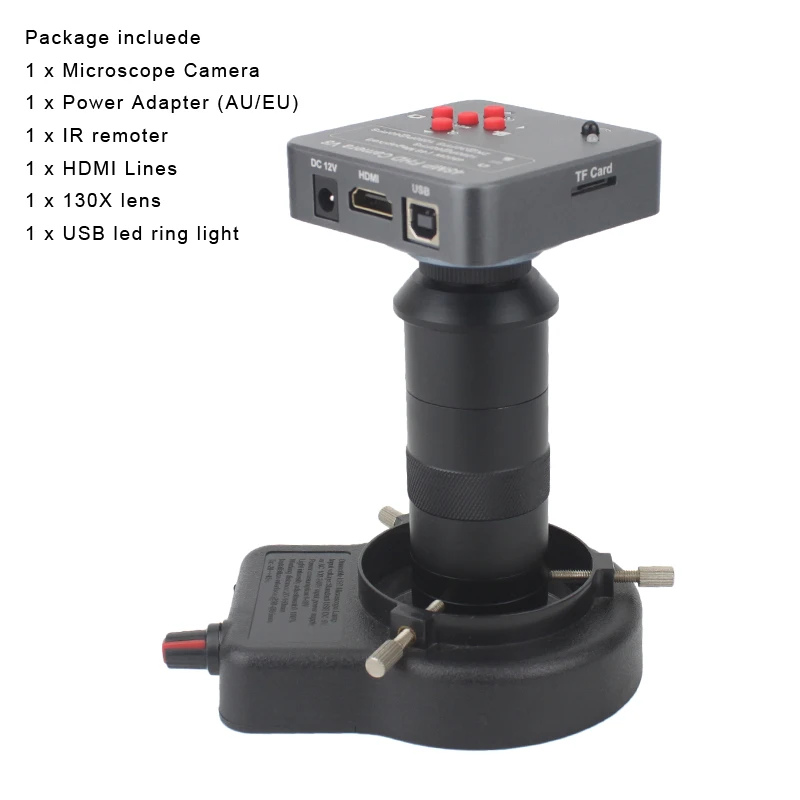

A: Package incluede
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
1 x Stand

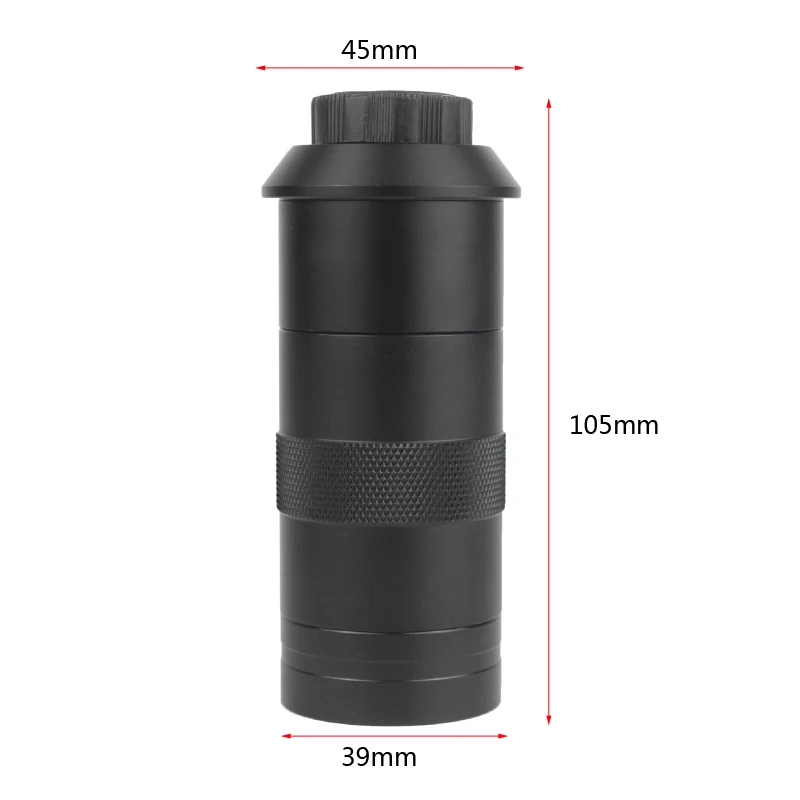

1 x 130X lens

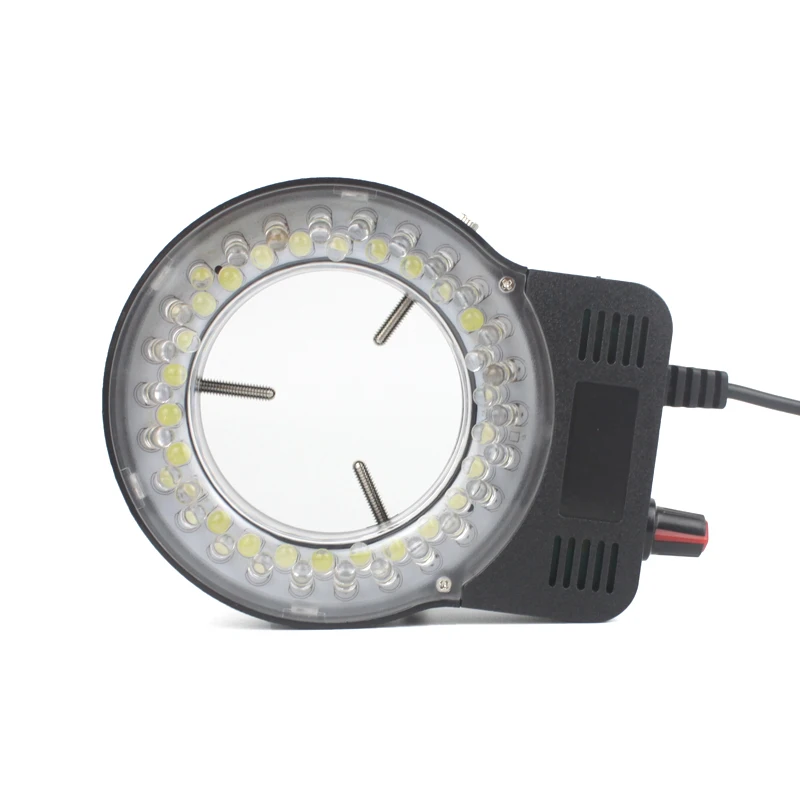

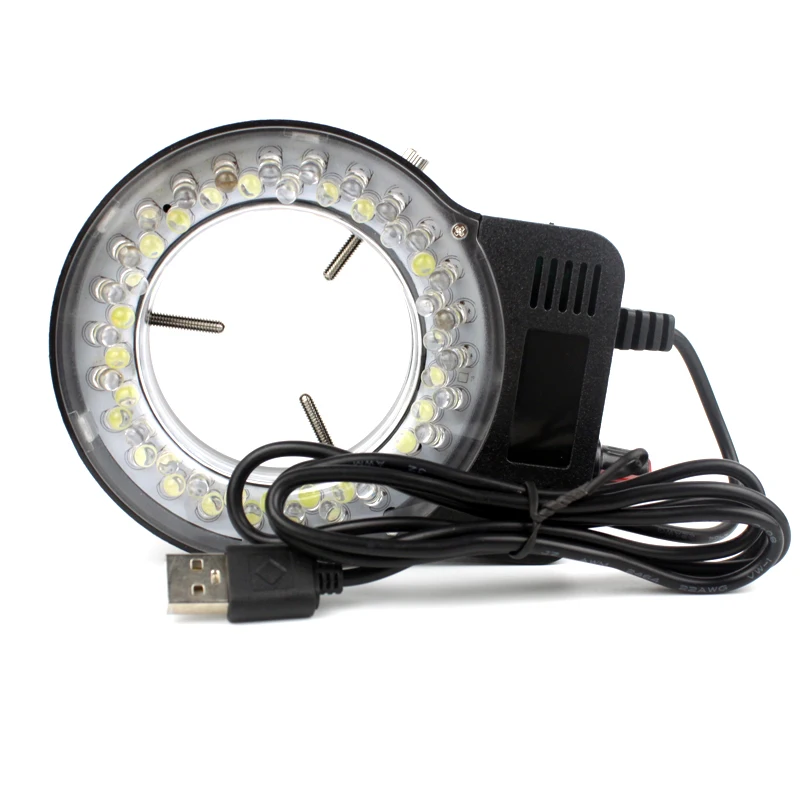

1 x USB led ring light
B: Package incluede
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
1 x 130X lens
1 x USB led ring light

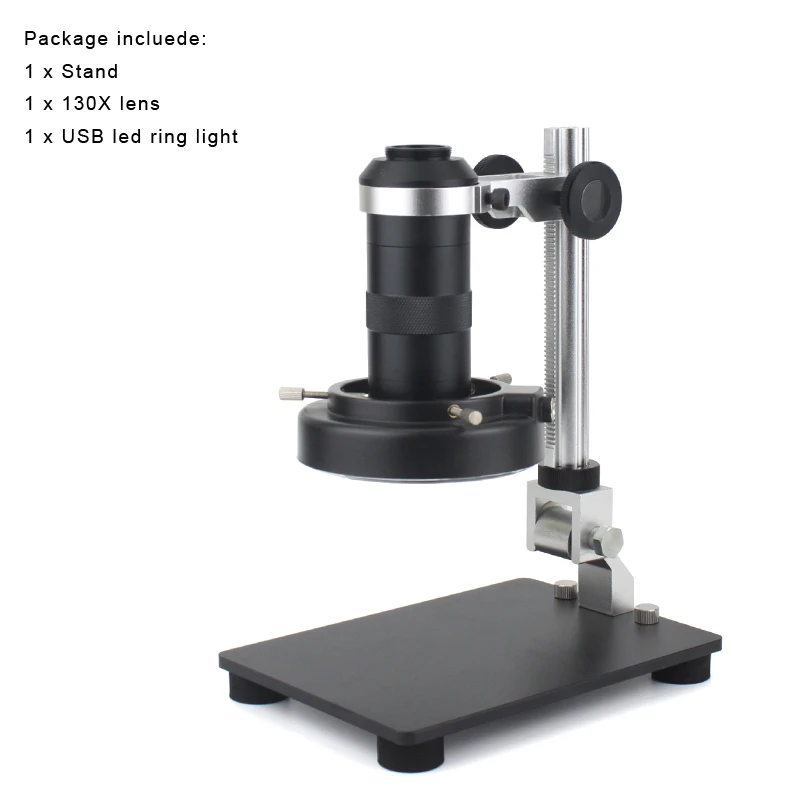

C: Package incluede
1 x Stand
1 x 130X lens
1 x USB led ring light

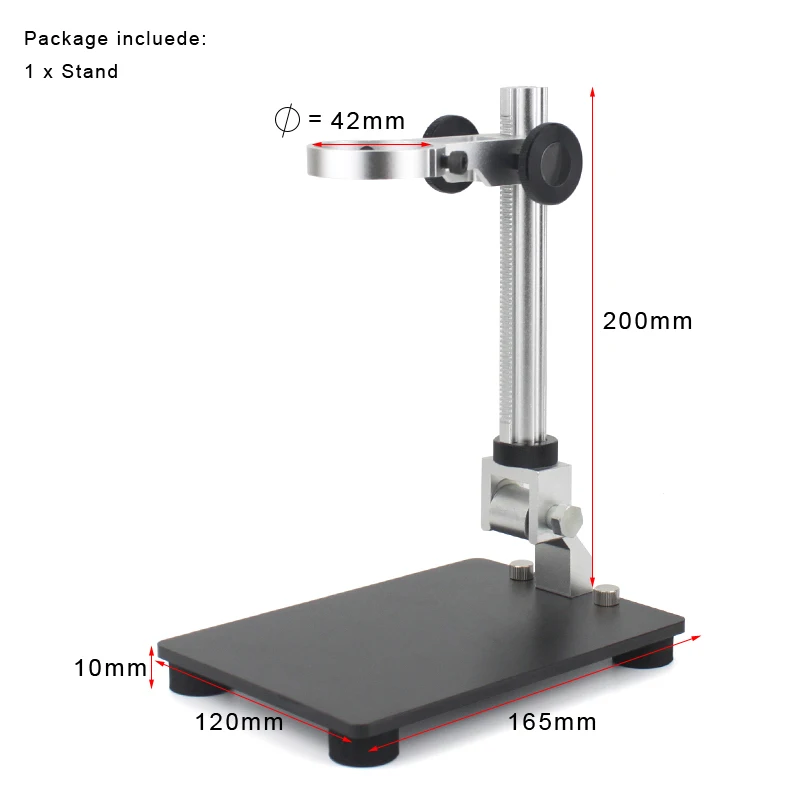

D: Package incluede
1 x Stand

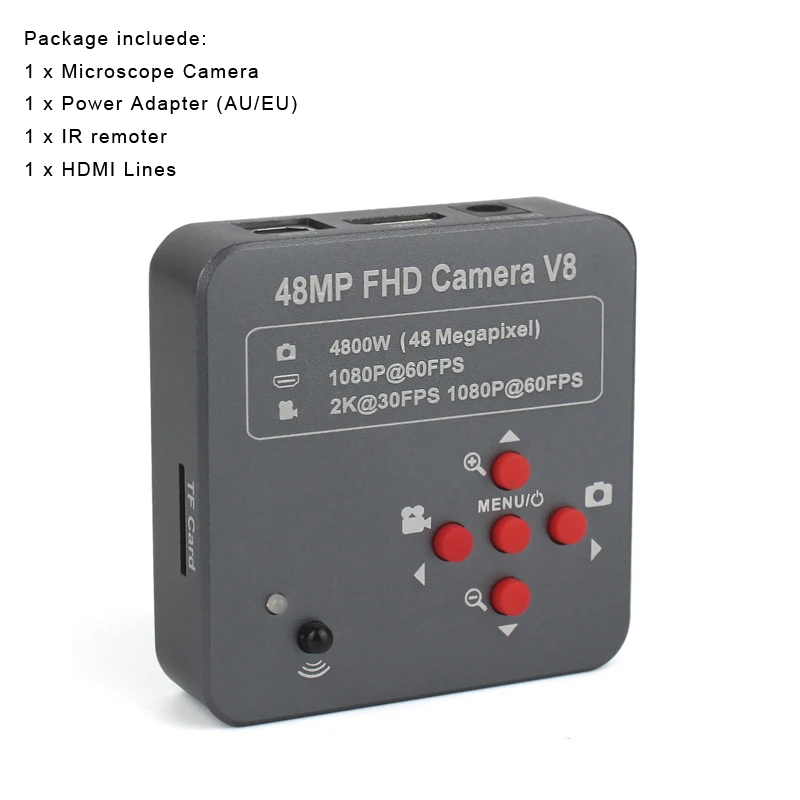

E: Package incluede

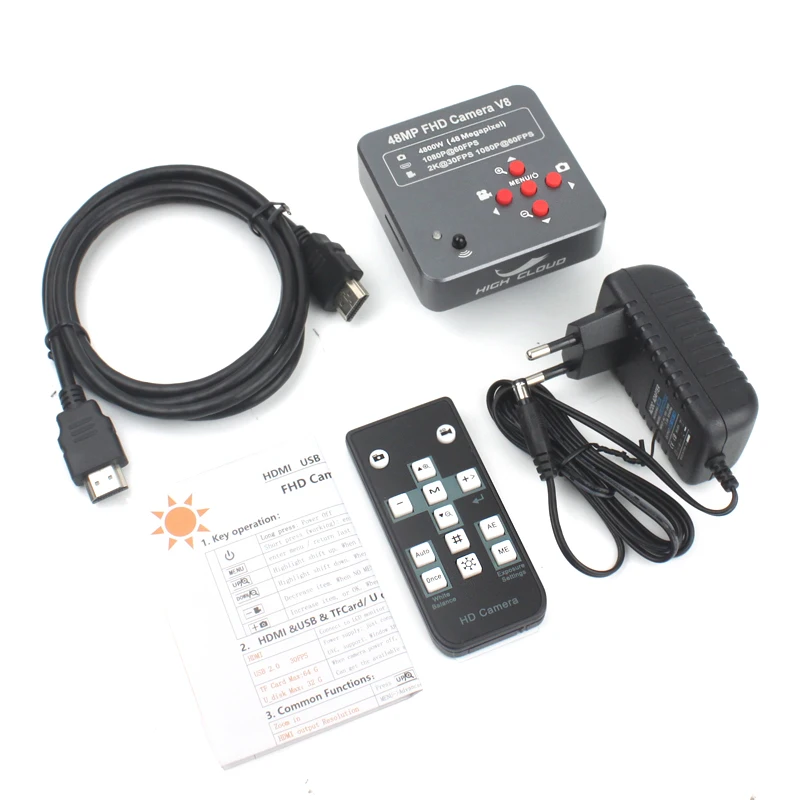

1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
