Custom CNC machining 38MP 2K HDMI USB Digital Video Monocular Microscope Camera Continus Zoom 300X C-Mount Professional Soldering Phone Repair Tools
Custom CNC machining 38MP 2K HDMI USB Digital Video Monocular Microscope Camera Continus Zoom 300X C-Mount Professional Soldering Phone Repair Tools
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.
13MP HDMI VGA Microscope Camera Specification:
Model: Camera with HDMI VGA two output
Sensor: 1/3 inch 13MP
Image format: jpg
Image resolution: 1920*1080 60F/S
White Balance: Auto
Light: Auto
Color: Color
Negative: Support
Morror: Left/right,Up/Down
Freeze: Support
OSD: English/Chinese
Line: different color,8 horizontal line , 8 vertical line,any positions

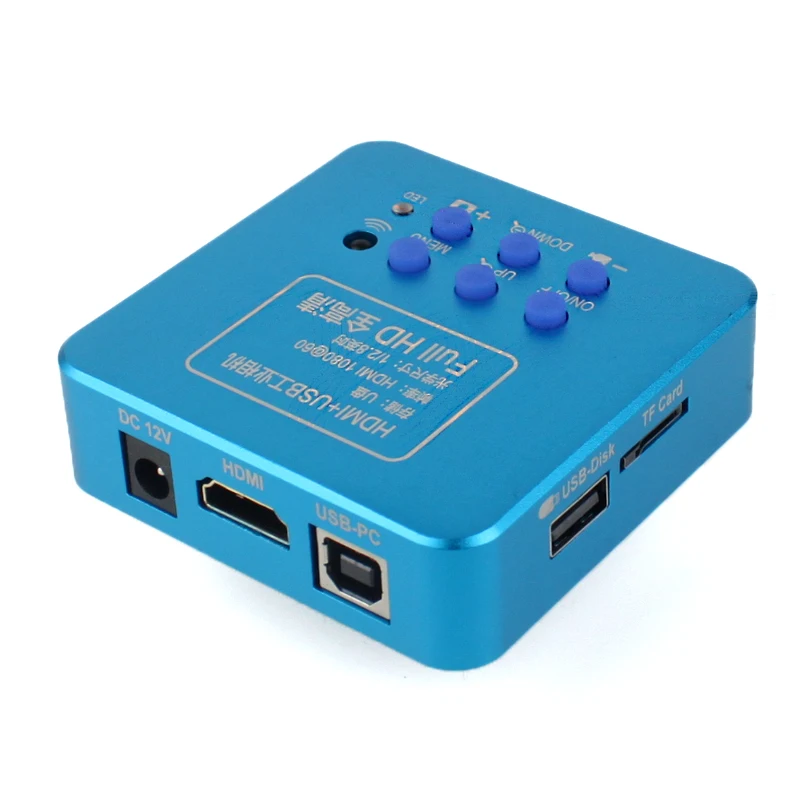

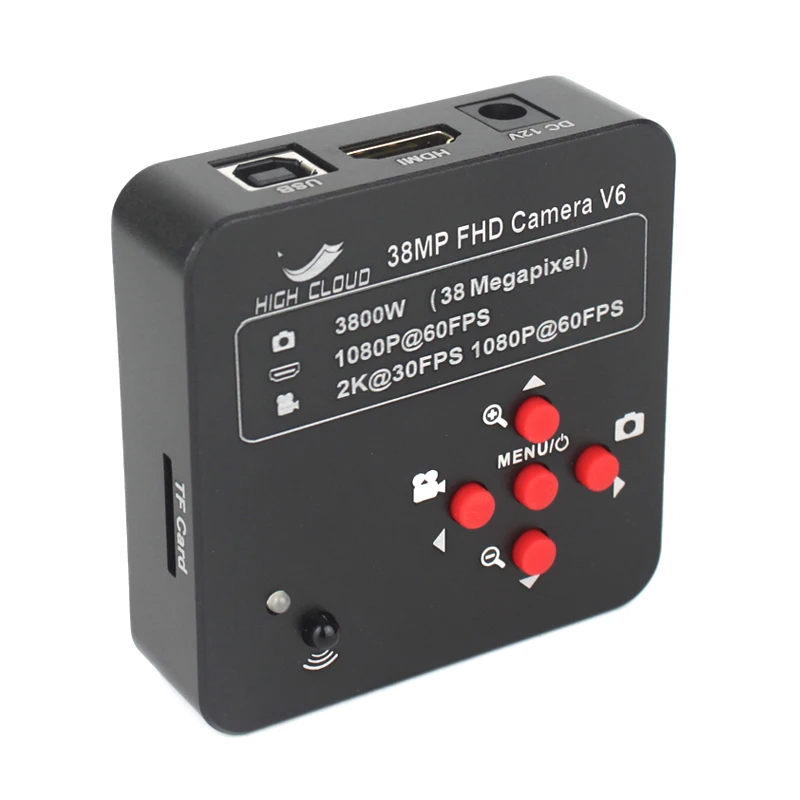

38MP HDMI USB Camera Specifications:
Image sensor: Panasonic original 38 million pixel CMOS sensor
Sensitive size: 1/2.3 inches. A larger field of view than the usual 1/3
Pixel size: 1.335μm × 1.335μm
Output interface: HDMI (Type A), USB (Type B), TF Card
Photo output: 38 million pixels (7120*5344)
Video output: 2K@30 frames, 1080p@60 frames
HDMI output: progressive 1920*1080 60 frames. Simultaneous output with USB
HDMI output ratio: support 4:3, 16:9, 16:10 screen, to ensure that the image is not distorted.
USB2.0 output (free drive): 1920*1080@30 1280*720@30 640*480@30. Simultaneous output with HDMI
TF card storage capacity: maximum 64GB
White balance: One-click white balance/automatic/manual, R, G, B can be individually adjusted
Exposure: manual/automatic. Adjustable exposure value
Crosshairs: 8 lines. Adjustable color, thickness and position
Cross tick: 2 lines. Dotted cross: 2 lines. Adjustable color, thickness and position
Sharpness, contrast, saturation, support, adjustable, black and white, negative film, support
Mirror: horizontal and vertical mirror
Language: Chinese/English
Digital zoom: support
Remote control: supported. The remote control takes pictures and videos without shaking.
Input voltage: DC 12V (support 5-19V), 55-21 large mouth
Lens interface: C/CS port
Product size: 74*74*35mm

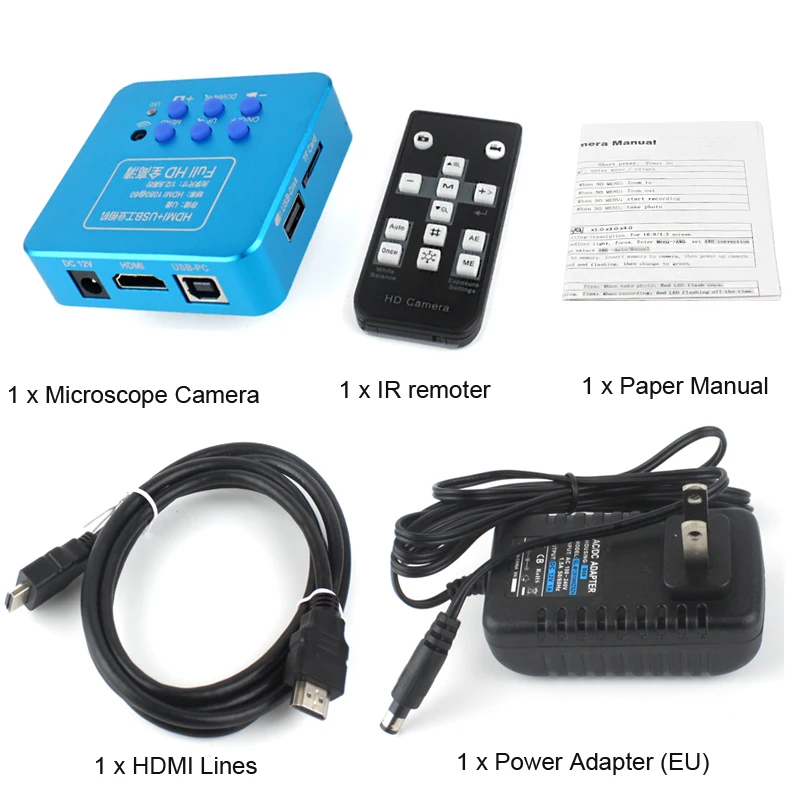

package includes: camera, power adapter, remote control, paper manual, HDMI cable, 16G TF memory card

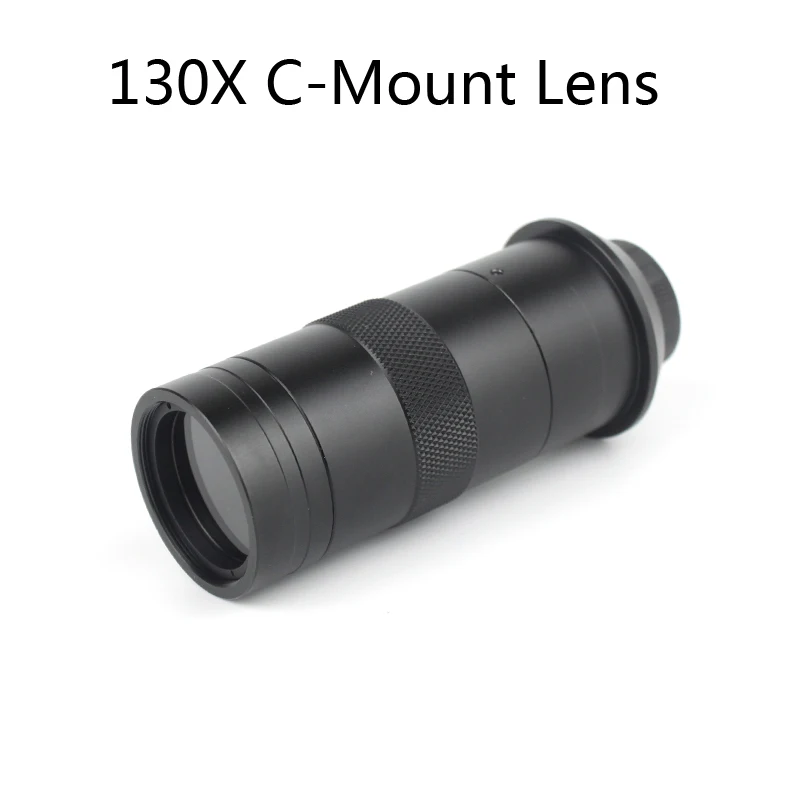

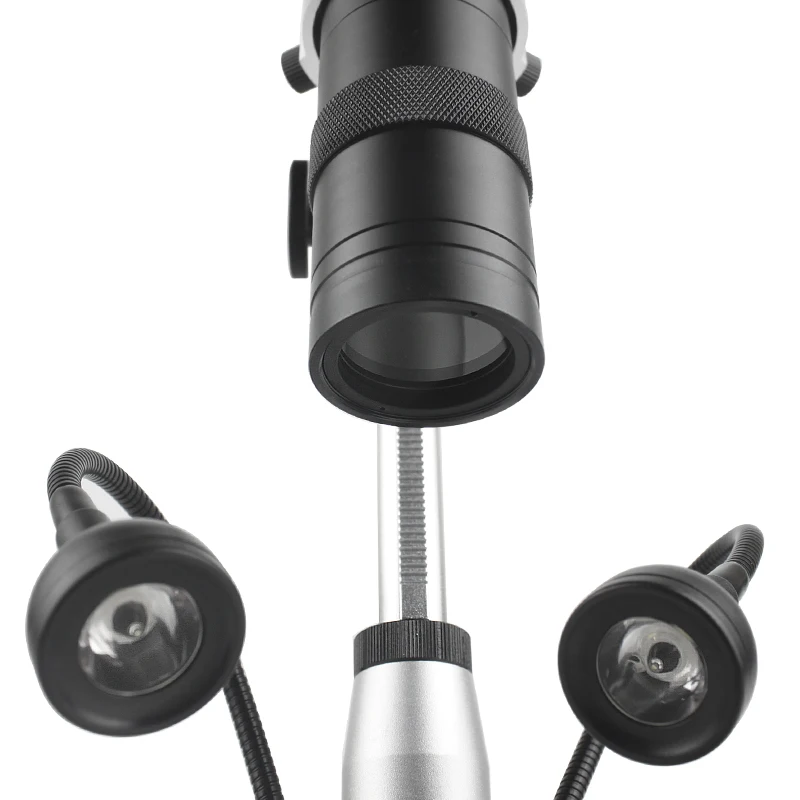

130X C-MOUNT Lens:
Working distance: 50~155mm
zoom c-mount Lens
Magnification Power by 8X~130X
Size: 115mm(L) * 40mm(DIA)

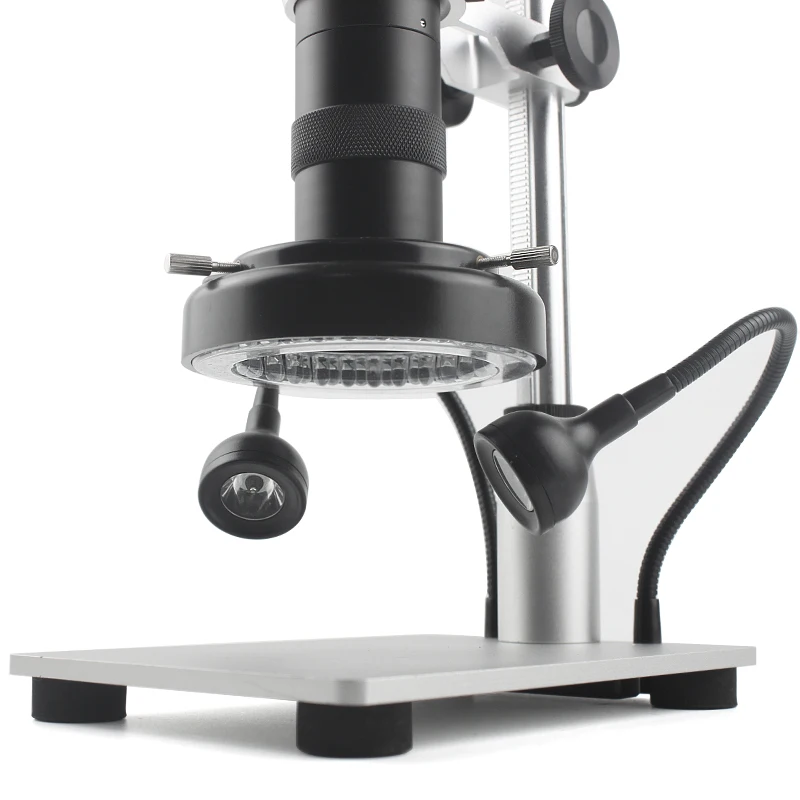

USB LED Adjustable Compact Microscope Ring Light:
Provides intense and focused shadow-free illumination
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)

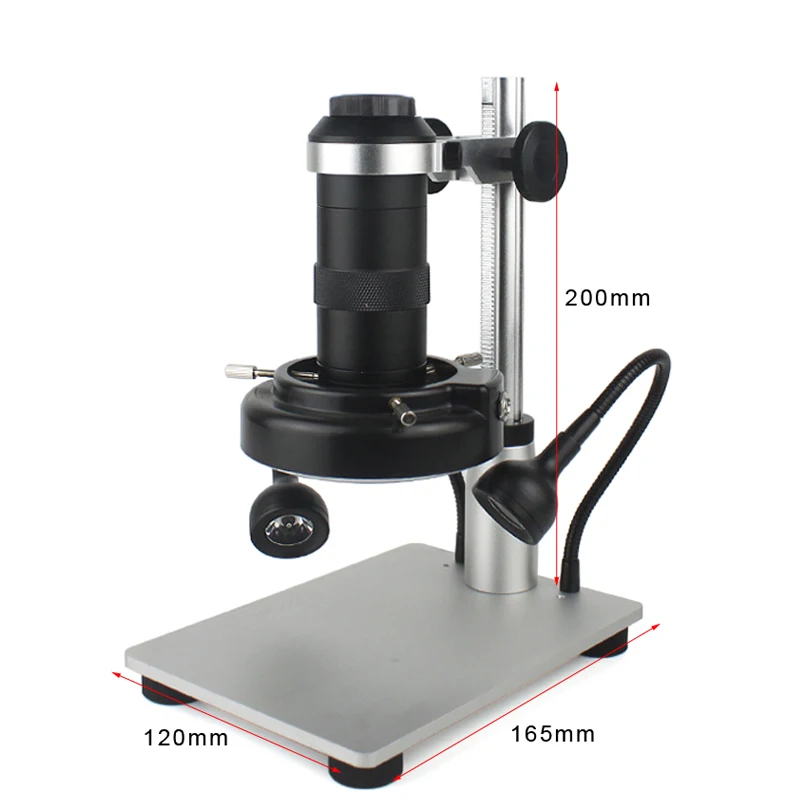

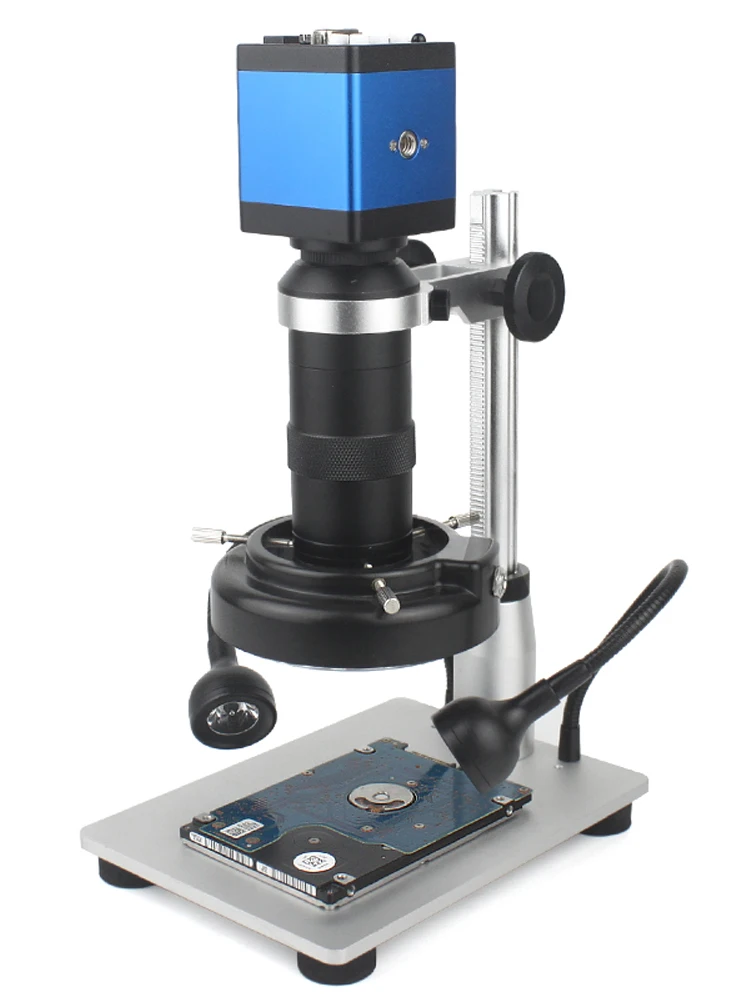

A microscope set :
1 x C-mount Lens

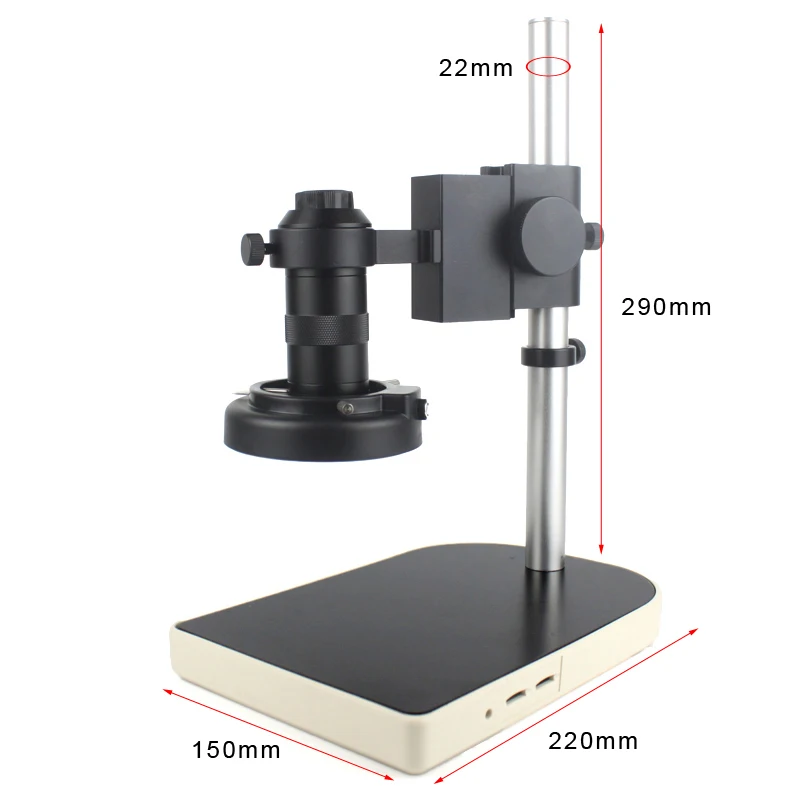

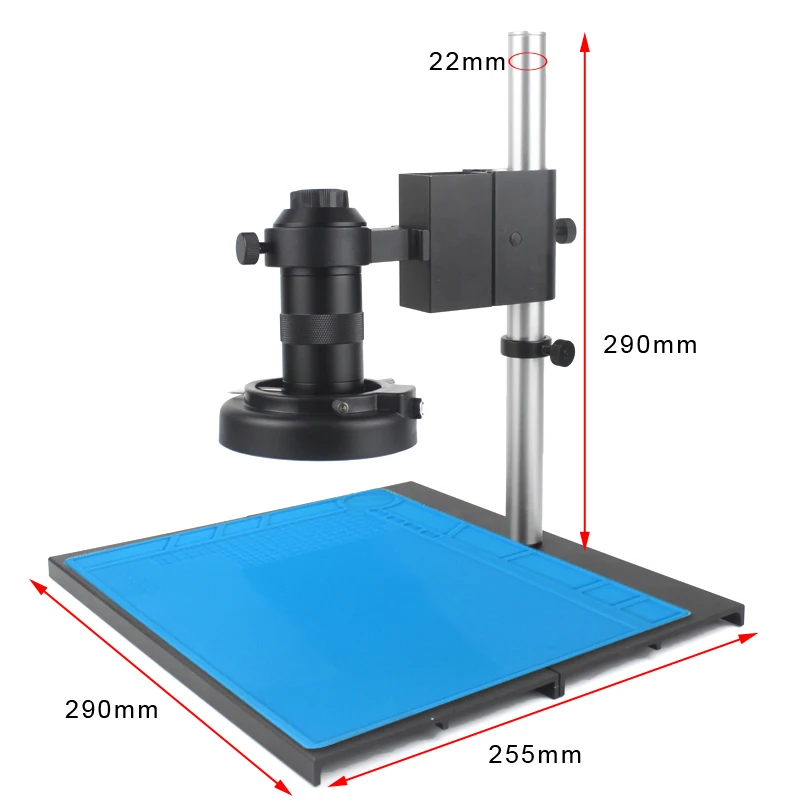

1 x Camera Stand
1 x microscope Camera (VGA HDMI13MP )
1 x Power Supply
1 x IR remoter
1 x LED Ring Light
B microscope set :
1 x C-mount Lens
1 x Camera Stand
1 x microscope Camera (VGA HDMI13MP )
1 x Power Supply
1 x IR remoter
C/D/E microscope Camera（The color picture shall prevail）
1 x Microscope Camera
1 x Power Supply
1 x IR remoter

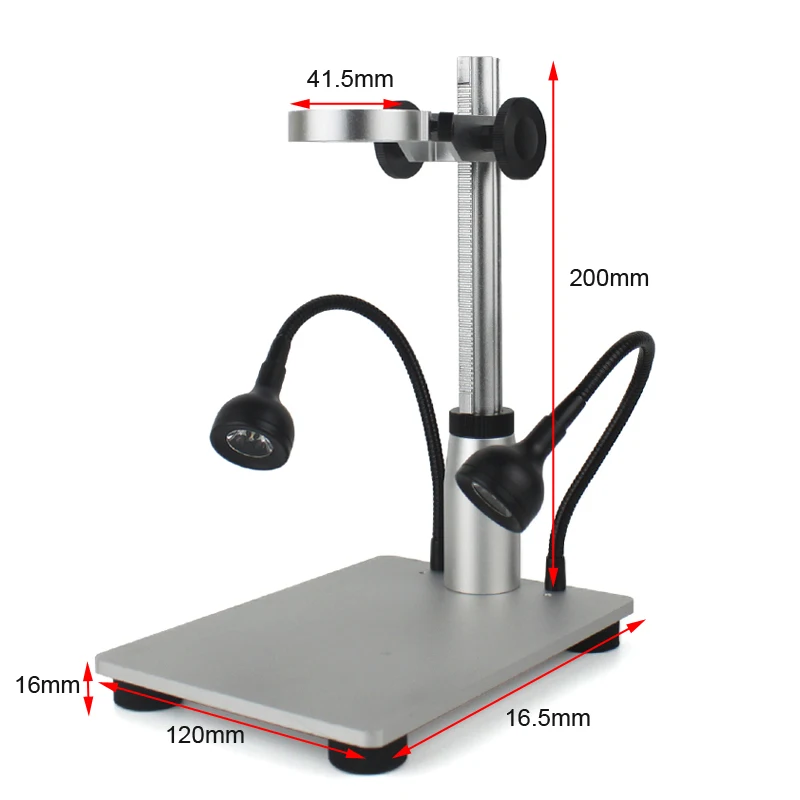

F/G/H Stand（The color picture shall prevail）
1 x Camera Stand
