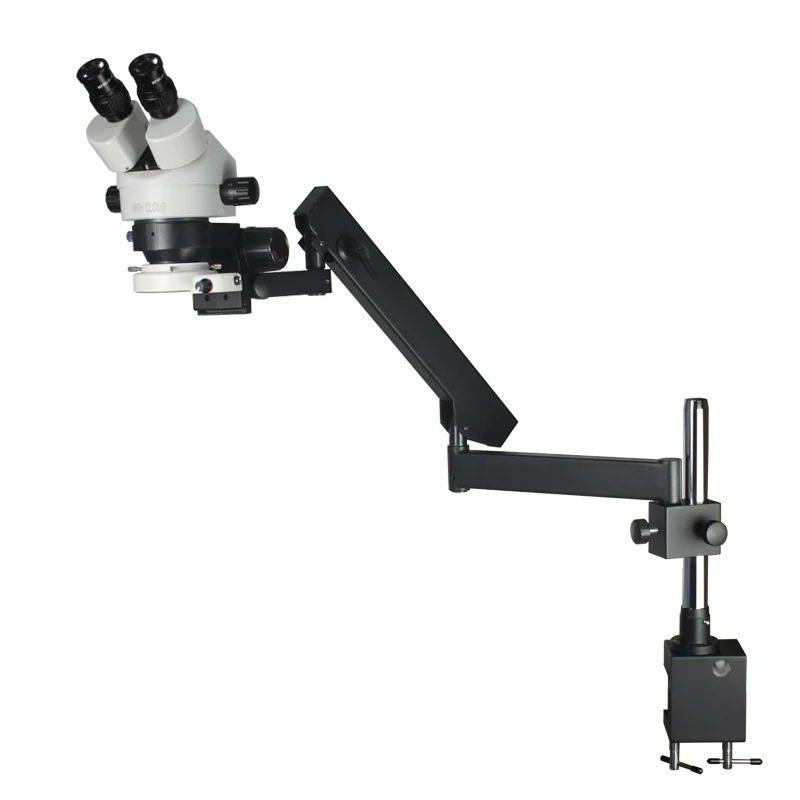

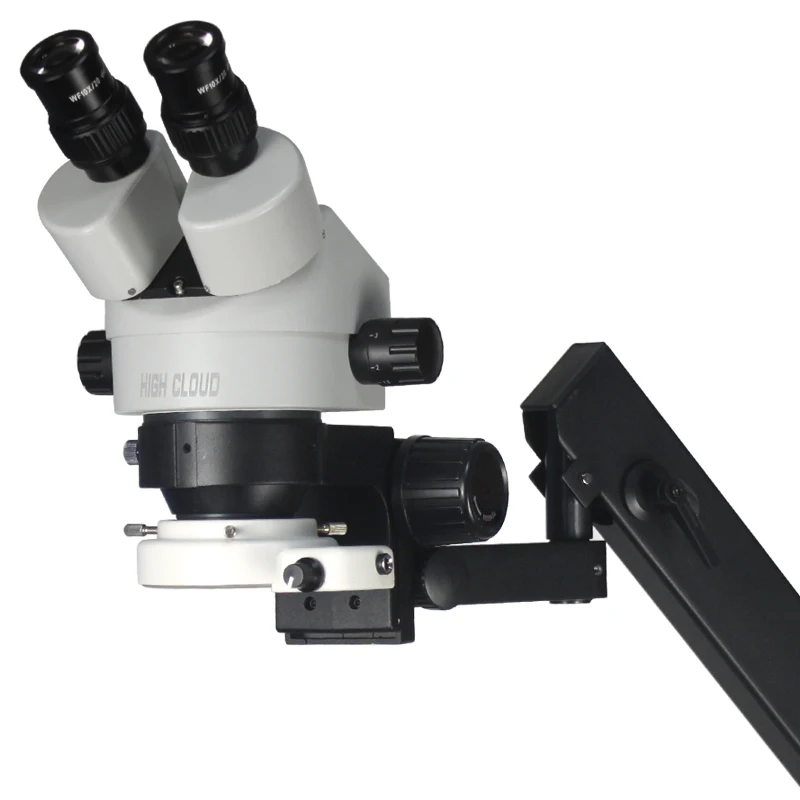

Custom CNC machining 3.5X-90X 7X-45X Articulating Arm Clamp Simul-Focal Industrial Trinocular Stereo Microscope 38MP HDMI Digital Video Camera Set

Custom CNC machining 3.5X-90X 7X-45X Articulating Arm Clamp Simul-Focal Industrial Trinocular Stereo Microscope 38MP HDMI Digital Video Camera Set

£397.60 GBP
£407.60 GBP £397.60 GBP
Sale Sold out
Taxes included.
Color
.We are cnc machining factory welcome customize products.

Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.

Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials

Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,

Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to  300mmX x 175mmY x 220mmZ

File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.

Features:
7X to 45X Continuous Zoom Magnification Power
45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces
Trinocular port for adding photo or video capability
30mm Super Widefield WF10X Eyepieces with 20mm Field of View
High Resolution with Great Flatness and Contrast
Sharp Stereo Erect Images over a Wide Field View
Crystal Clear Original True Color Images
Large Working Distance
Accurate Alignment Ensuring a Fatigue-Free Viewing
Full Optical Glass Elements
Precise Ground Glass Lens
All Metal Mechanical Components
Adjustable Interpupillary Distance
Manufactured under ISO 9001 Quality Control Standard


Specifications:

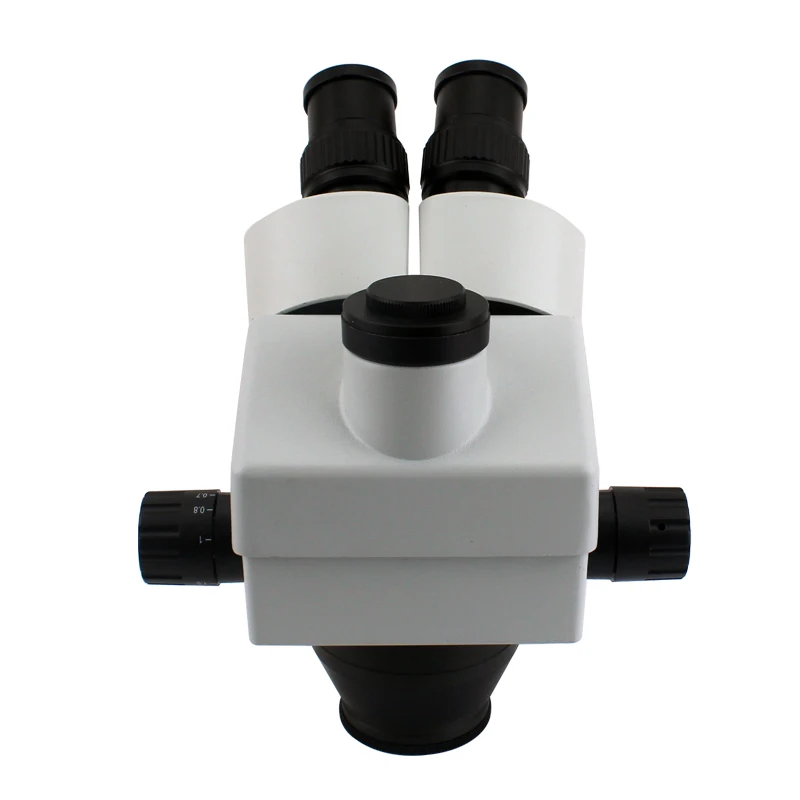

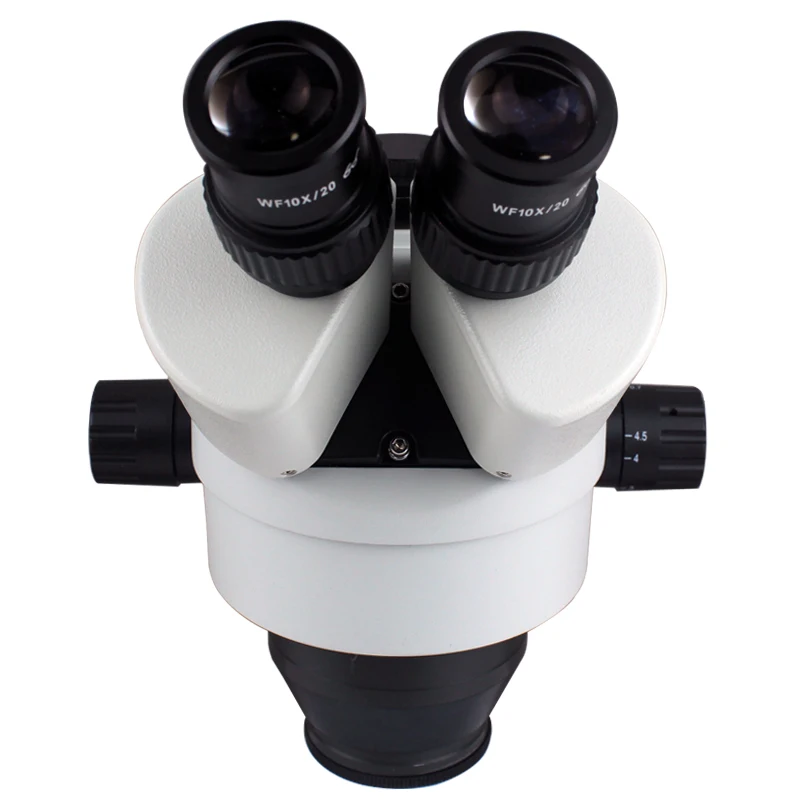

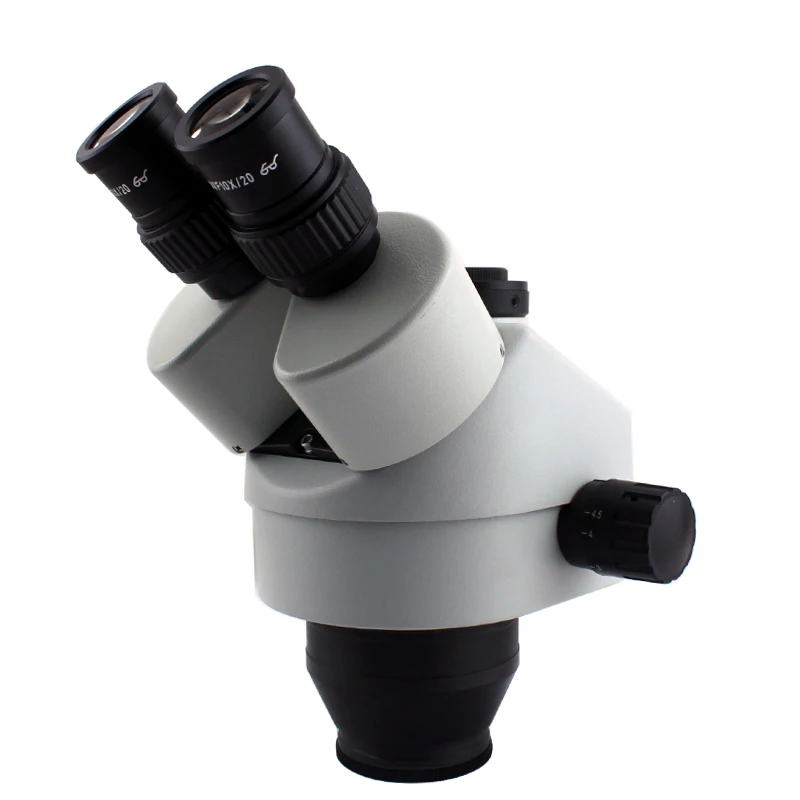

Head: 45-degree inclined 360-degree swiveling trinocular simul-focal
Eyepiece: 30mm super widefield high-eyepoint WF10X/20
Objective: 0.7-4.5X
Zoom Range: 6.5:1
Trinocular Port: 23mm photo port
Interpupillary Distance: 2-1/8" to 3"(54-76mm)
Field of View: 1-1/4" (33mm)

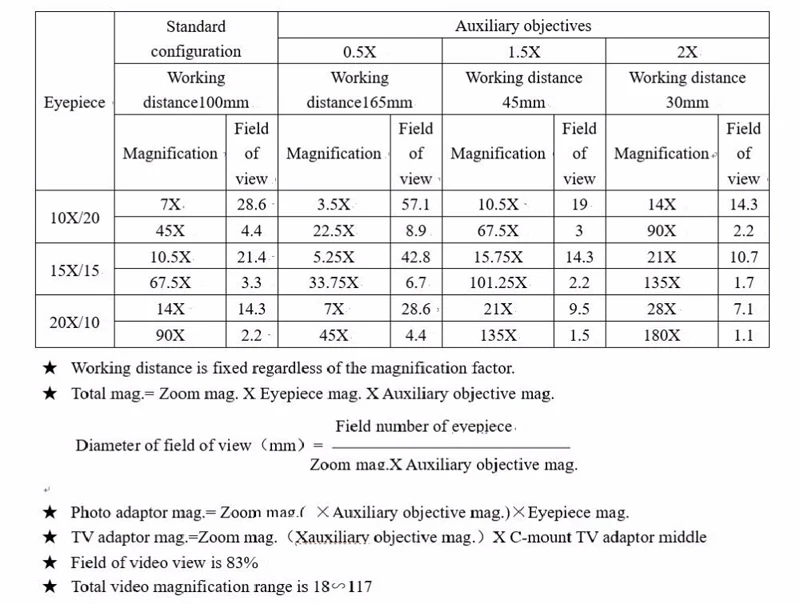

Working Distance: 7X-45X (100mm) Use 0.5x objective lens 3.5X-45X(165mm) Use 2.0x objective lens 7X-90X(40mm)
Head Mounting Size: 3" (76mm) diameter
Accessory Mounting Size: 1-7/8" (48mm female thread) diameter


144 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 100-240V, 50-60HZ
Suit for the dia of the lens: 30mm-160mm

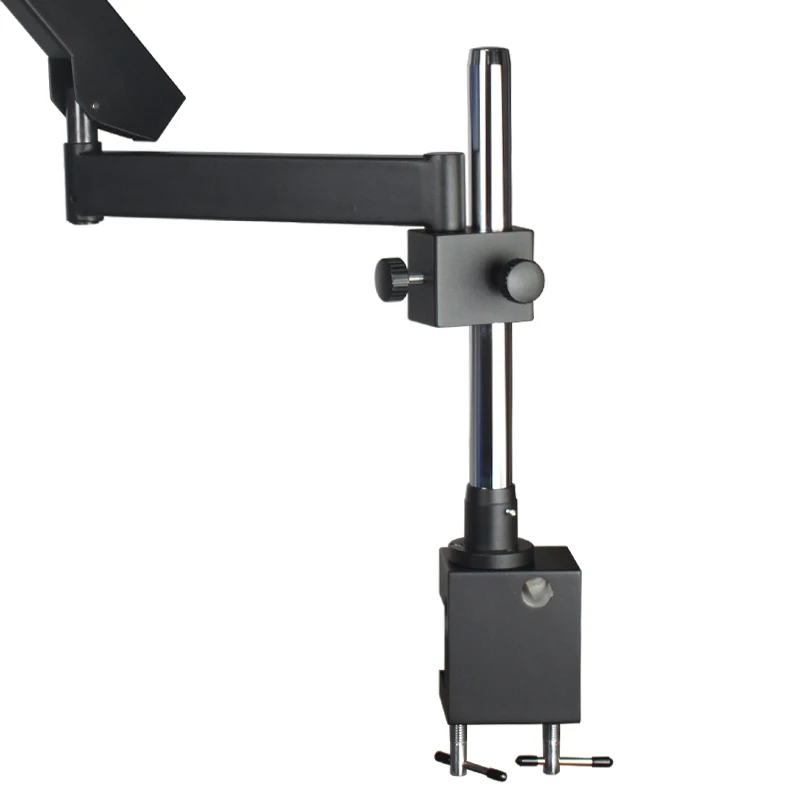

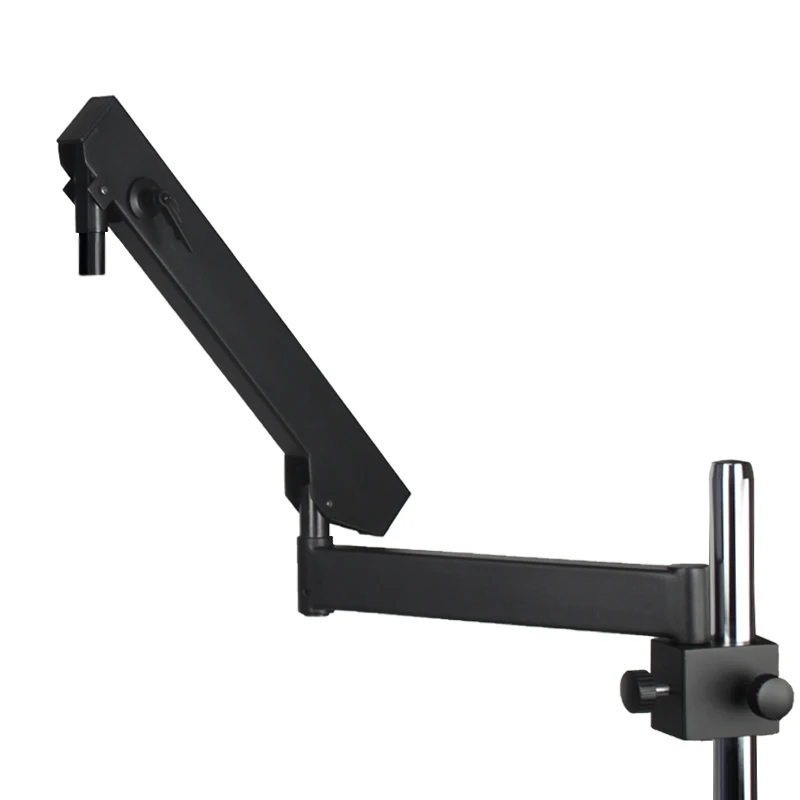

Expand the scope of operations,any orientation and angle observed the objectives.
Vertical Height : 400mm
Horizontal Distance:770mm
Base size: 98x80x116mm
Max Clamp：50mm
Steel Gears on Focusing Holder.
Standard Size Focusing Holder - Will Fit Scope Heads with Diameter of 76mm,Connection diameter of 16mm.

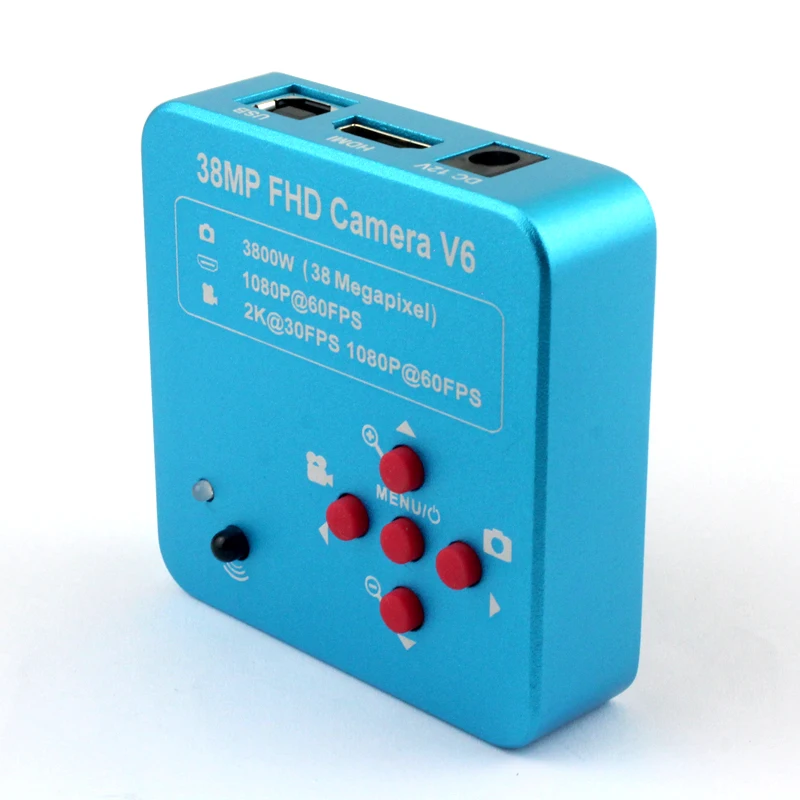

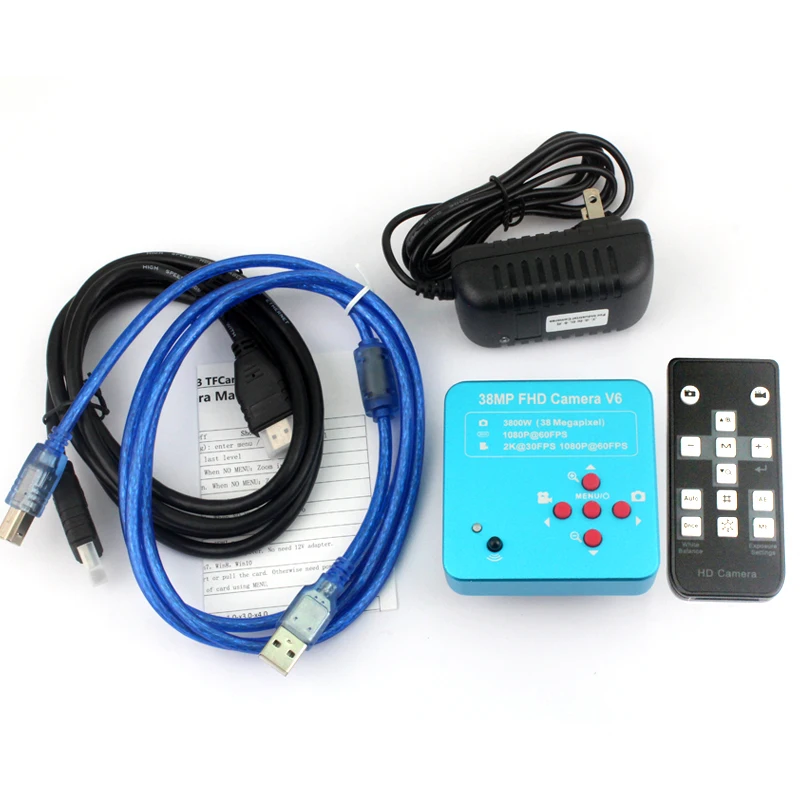

Specification:
Image sensor: Panasonic sensor
Frame rate: 1920*1080@60FPS
Housing: Aluminium alloy
Pixel size:1.43μm × 1.43μm

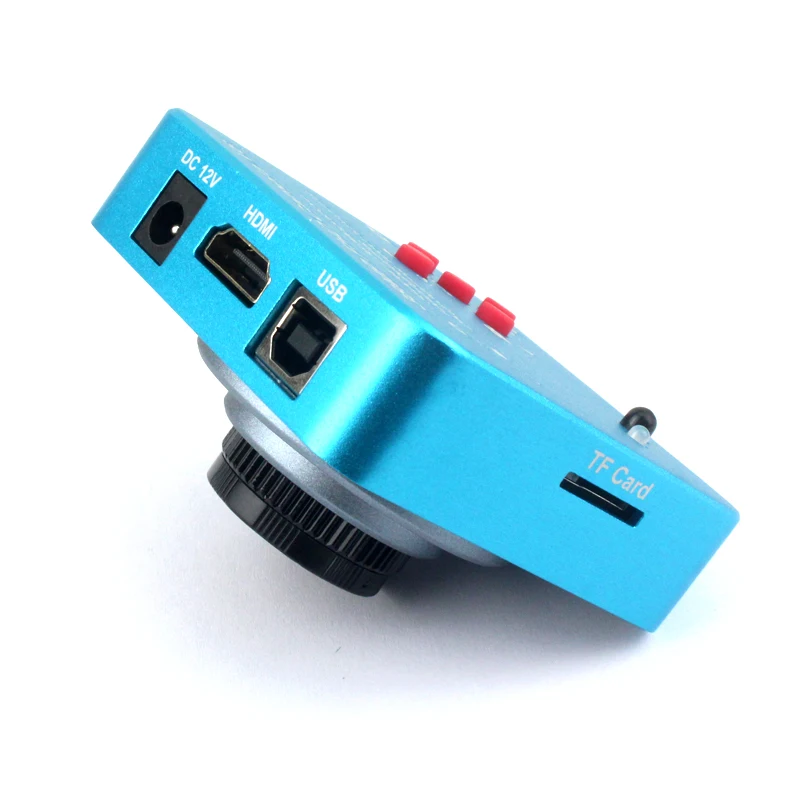

Output:USB, HDMI, TF card, infrared remote control
Sensor size:1/2.3"
Power:DC-12V/1A

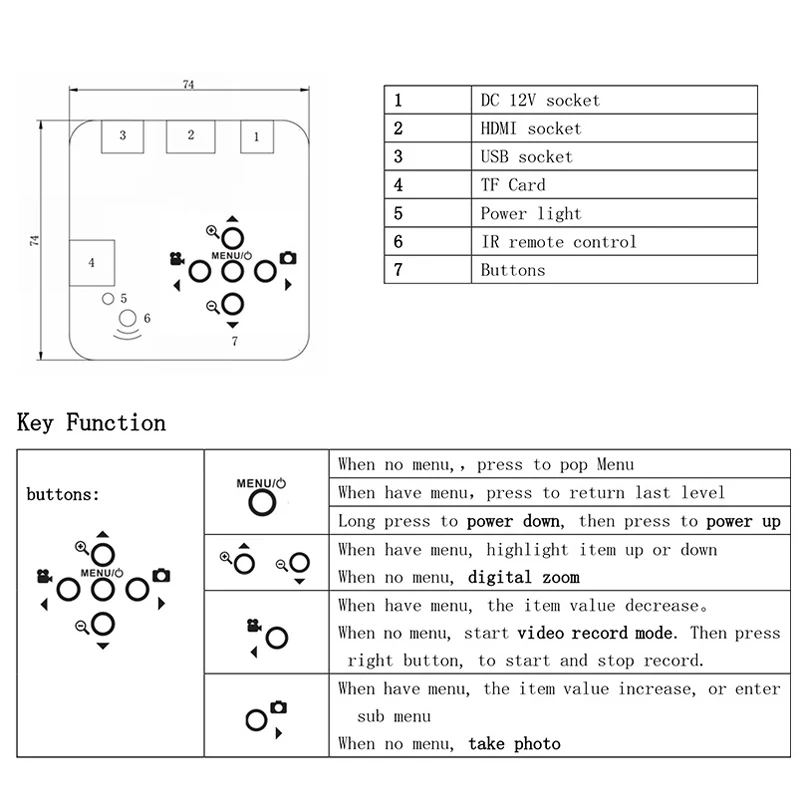

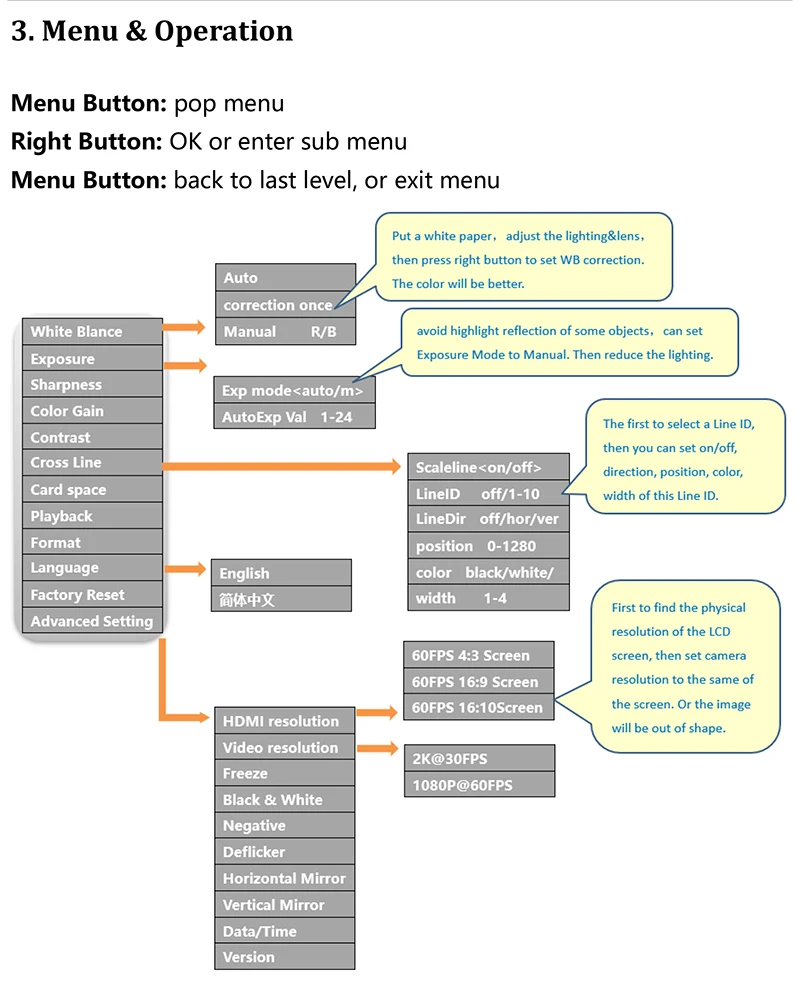

Features
Basic function:Brightness, contrast, saturation, white balance,
black and white switching, date adjustment
Image adjustment:Exposure, Flicker restrain, Acutance,
Gamma, Cb/ Crgain adjustment
Camera function:Digital zoom, Horizontal/
vertical mirror, image freeze
Storage:Image capture,video, image preview, TF card formatting
Reticle:4 sets of reticle, can define the
color, line, displacement, and hidden
Crosshair:Can adjust color, line size, hide or display
White balance: Auto/manual
TF card interface: Max 64G
HDMI interface: Standard HDMI output
HDMI Image resolution:  8168*6128 4:3(50MP) 8168*4592 16:9(37MP) (for TF Card),
USB Image resolution: 1920 *1080 (for PC USB)
Video resolution: 1920 *1080 @ 60FPS for HDMI, 1920 *1080 @ 30FPS 1280*720@ 30FPS 640*480 @ 30FPS 320*240 @ 30FPS  for USB
Video format: MP4
Image format:JPG
Color: Color/black and white
Freeze: Support
Exposure:Auto/manual

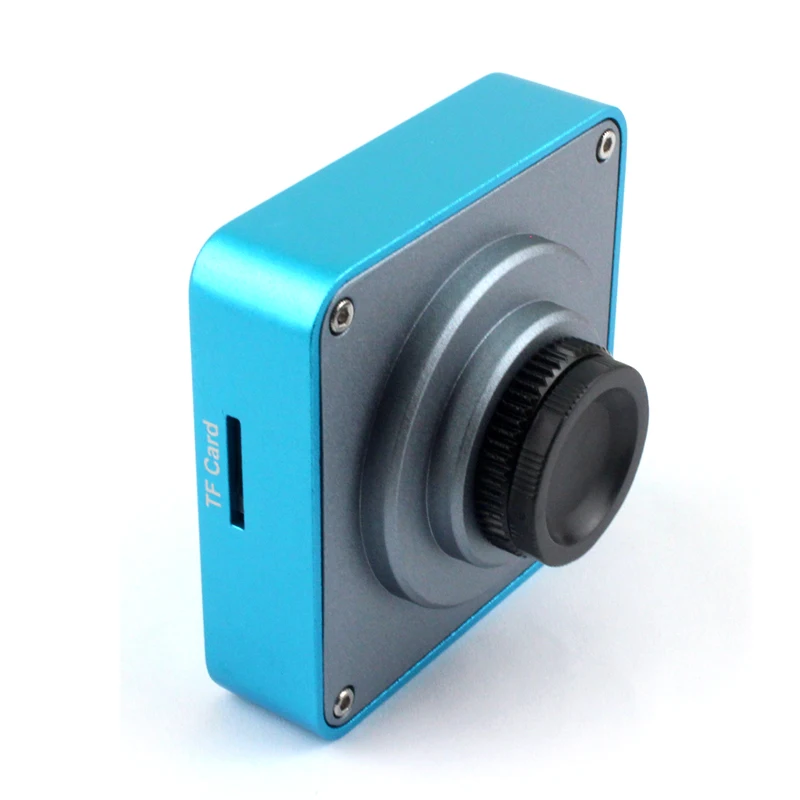

Camera Interface:C CS Mount
EV:+/-
Remote operation:Yes
Language Support :Chinese English French  Spanish  Portuguese  German Italian Simplified Chinese Traditional Chinese Russian Japanese



Package Including:
1 x Trinocular Stereo Zoom Head
1 x Pair of Super Widefield 10X20MM Eyepieces
1 x 144-LED Ring Light
1 x Focusing Rack
1 x mount Adapter
1 x 0.5X Microscope Auxiliary Objective Lens(Working Distance 165 mm)
1 x 1.0X Microscope Auxiliary Objective Lens(Protection function)
1 x 2.0X Microscope Auxiliary Objective Lens(Working Distance 40 mm)
1 x Articulating Arm Clamp Microscope Bracket
1 x HDMI USB Video Camera（Optional）
1 x 8GB TF card（Optional）
1 x CTV1/2 adapter Lens（Optional）
1x WF20X eyepieces（Optional）
