Custom CNC machining 2K 38MP HDMI Industrial Digital Video Microscope Camera Monocular 130X Zoom C-Mount Lens TF USB Storage For PCB Repair Soldering
Custom CNC machining 2K 38MP HDMI Industrial Digital Video Microscope Camera Monocular 130X Zoom C-Mount Lens TF USB Storage For PCB Repair Soldering
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.

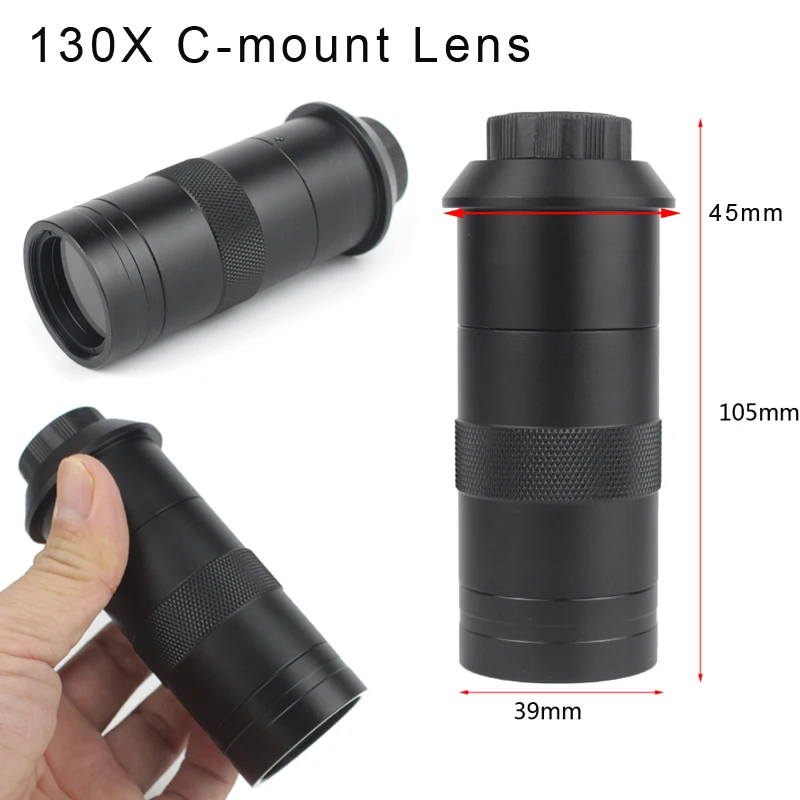

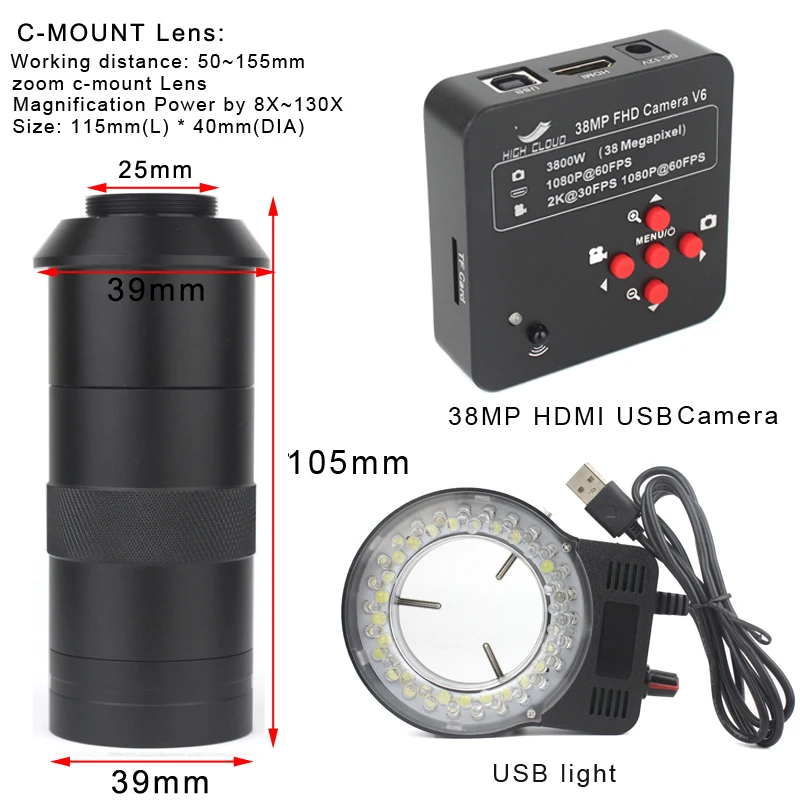

130X C-MOUNT Lens:
Working distance: 50~155mm
zoom c-mount Lens
Magnification Power by 8X~130X
Size: 115mm(L) * 40mm(DIA)

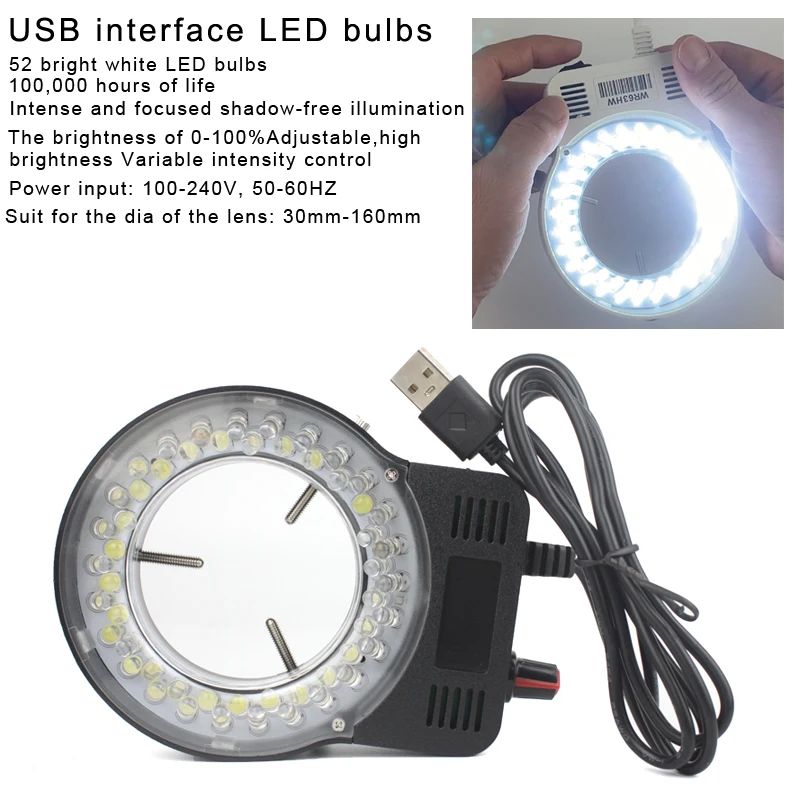

56 LED Adjustable Compact Microscope Ring Light:
Provides intense and focused shadow-free illumination
Lighting direction changeable
Variable intensity control
Intense and focused shadow-free illumination
100,000 hours of life
Power input: 100-240V, 50-60HZ, auto switching
Inside diameter of the ring light: 1.0" (27mm)
Overall outside diameter: 1.77" (45mm)

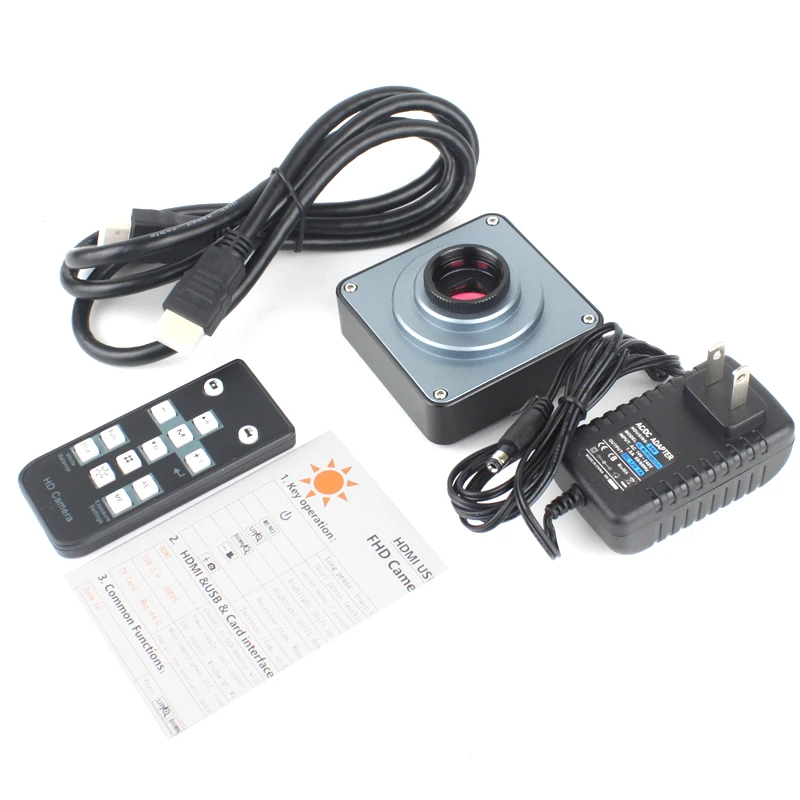

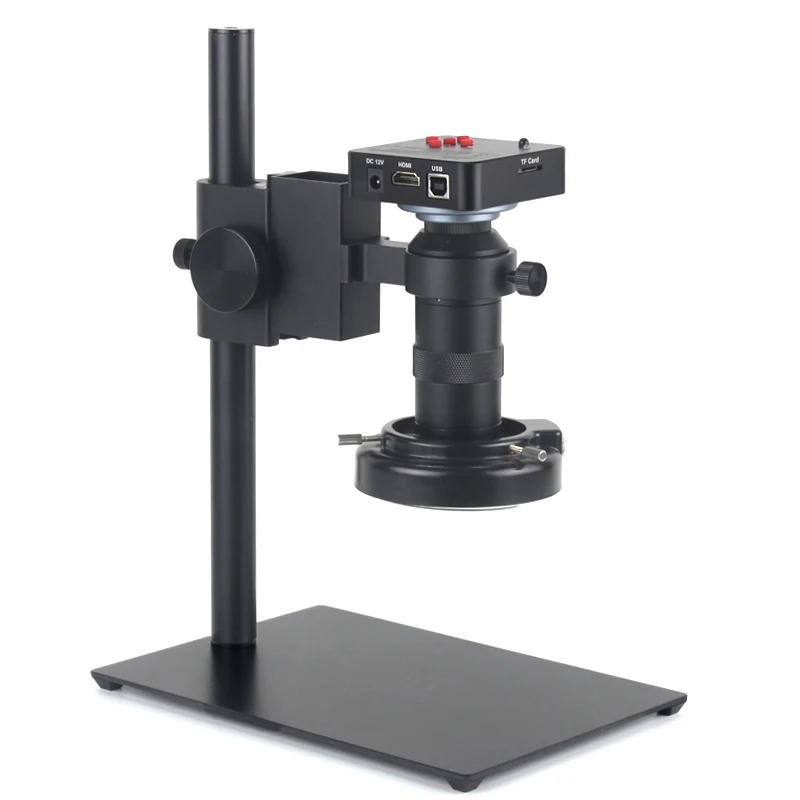

A set :include
1 x 130X C-mount Lens

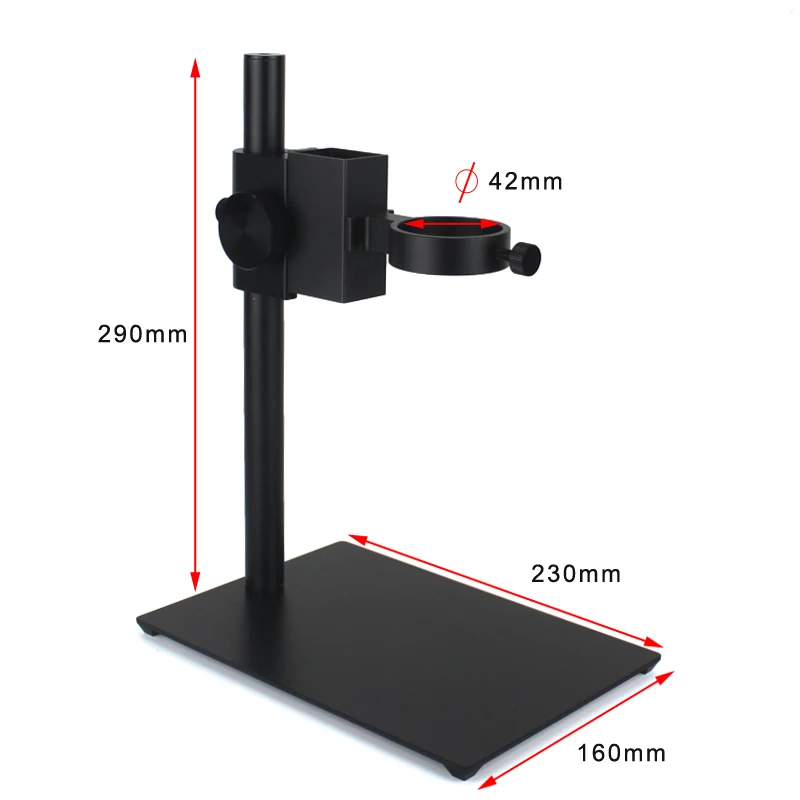

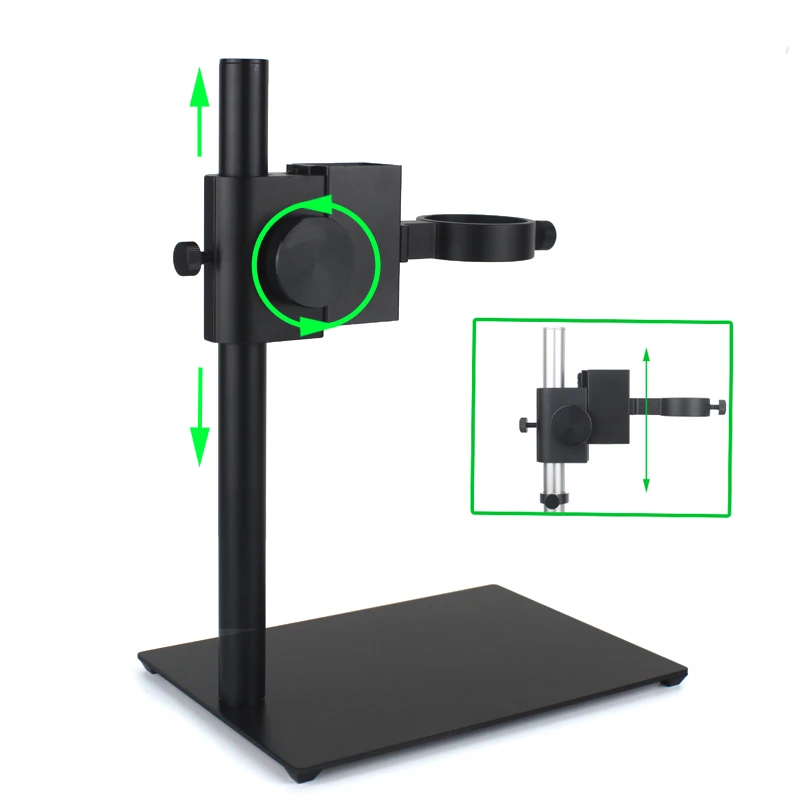

1 x Camera Stand
1 x microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI cable
1 x LED Ring Light
B set :include
1 x 130X C-mount Lens
1 x microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI cable
1 x LED Ring Light

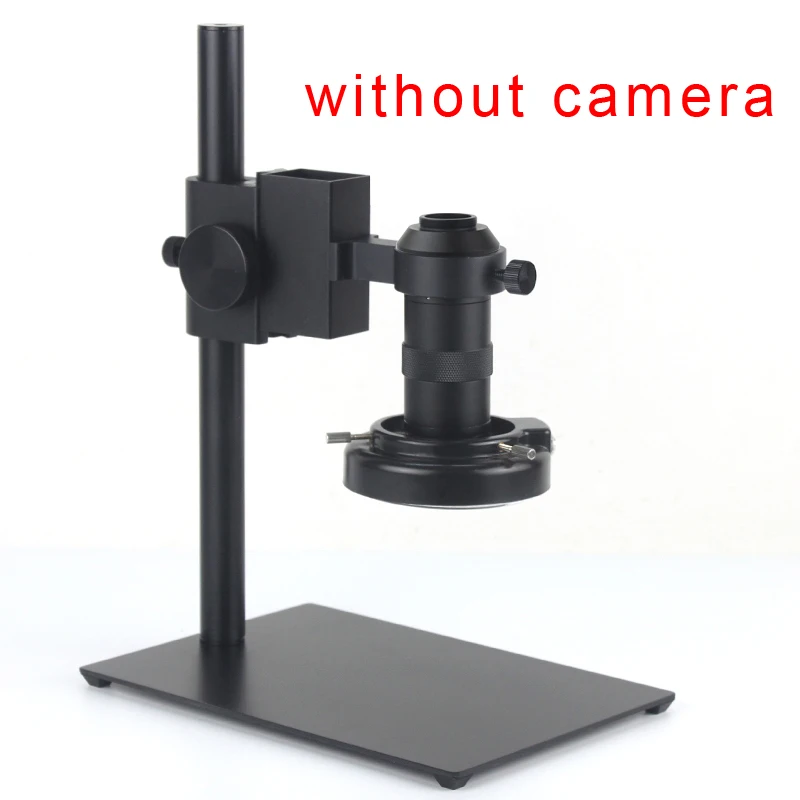

C set :include
1 x 130X C-mount Lens
1 x Camera Stand
1 x LED Ring Light
D set :include
1 x microscope Camera
1 x Power Adapter
1 x IR remoter
1 x HDMI cable
E set :include
1 x Camera Stand

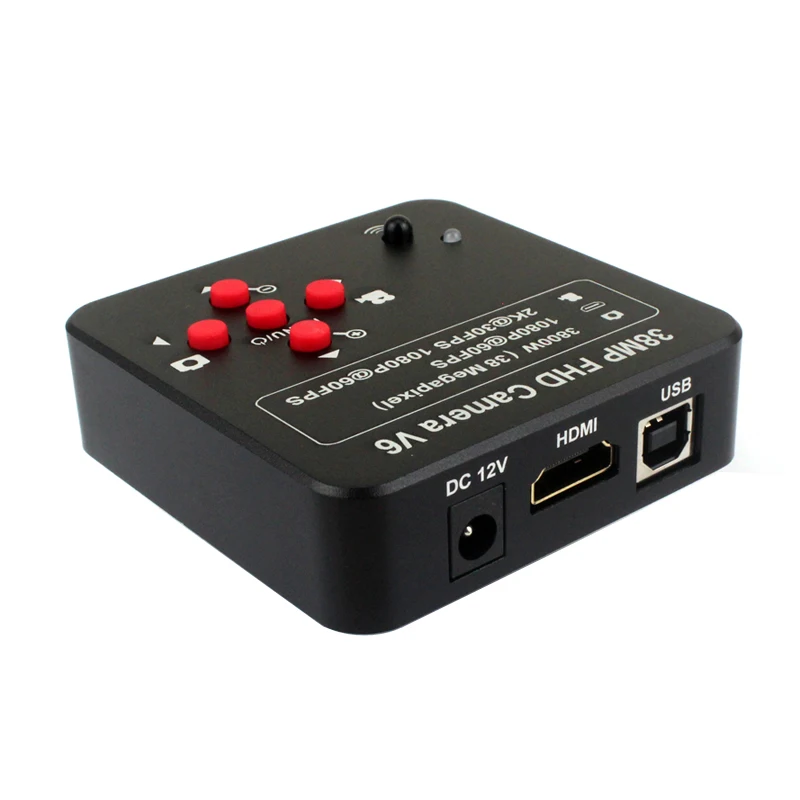

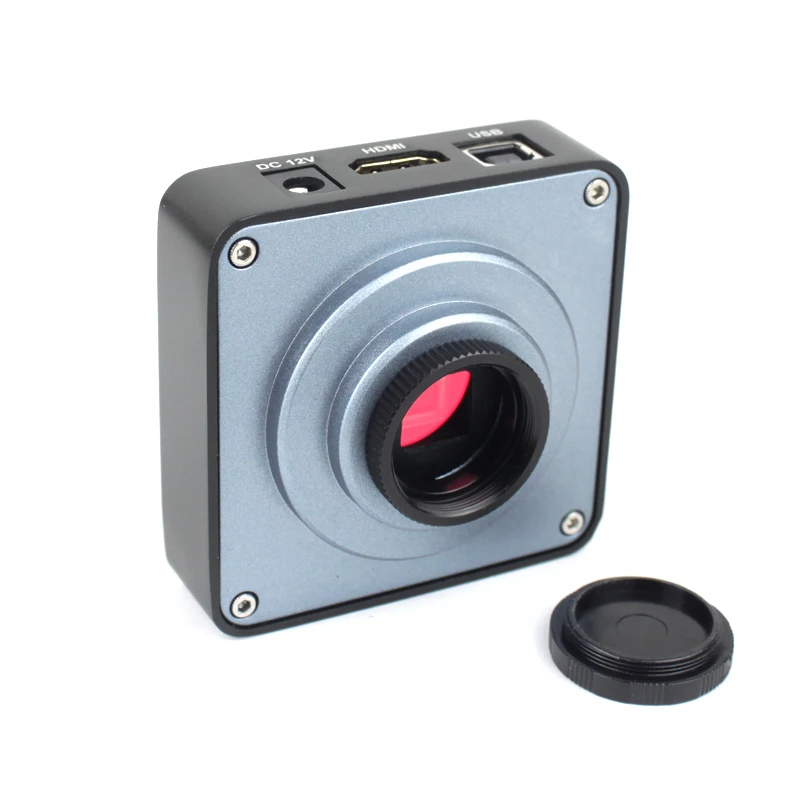

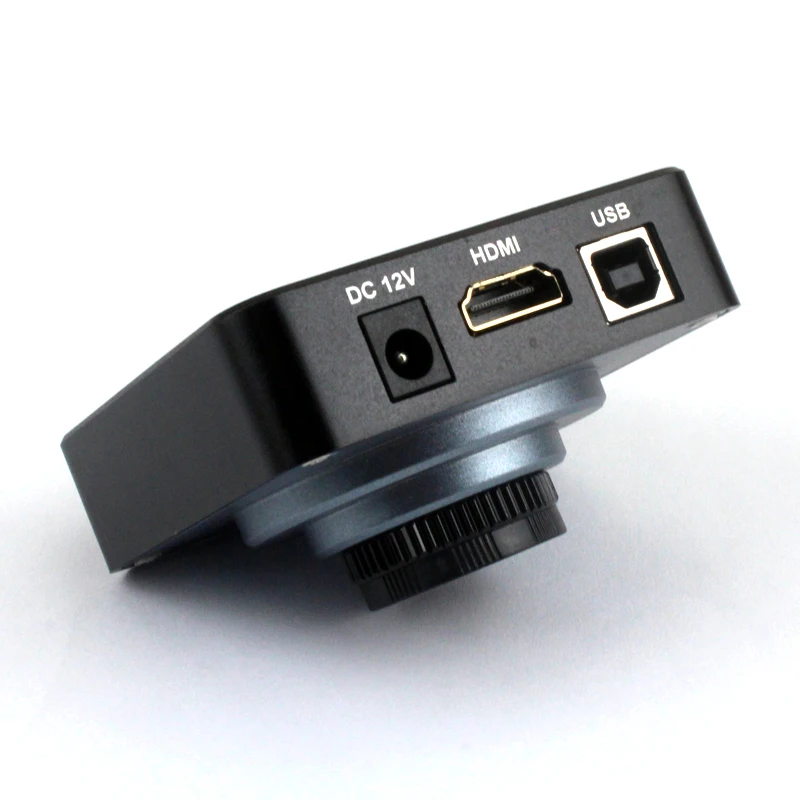

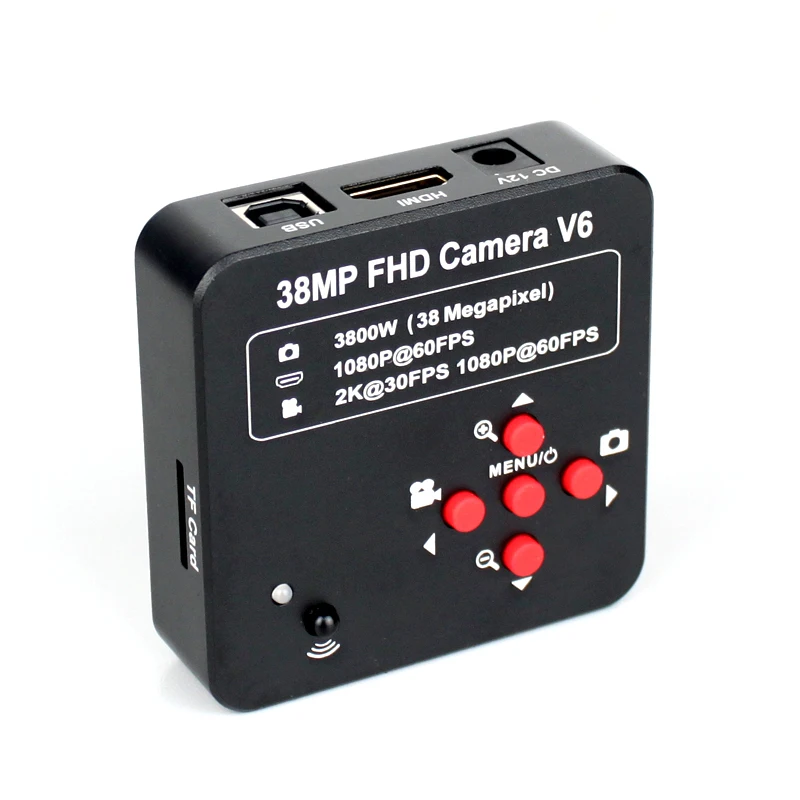

38MP 2K 60Fps HDMI USB
Sensor Panasonic:38 MegaPixel, 38 million pixels CMOS
Optical format:1/2.3 inch
pixel size:1.335μm x1.335μm
Interface:HDMI(Type A).USB(Type B).TF Card
Image resolution:21MegaPixel
Video record resolution:2K@30FPS 1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
Can output with USB at the same time
HDMI scale:Support 4:3,16:9,16:10 screen
USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
Can output with HDMI at the same time
TF card:MAX 64GB
AWB:WB color correction/Auto/Manual
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Dotted lines:2lines.Can set color& width& position
Sharpness Contrast Color gain:Support
Mono Negative:Support
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
Digital Zoom:Support
IR remoter:Support
Voltage in:DC 12V 55-21mm size
Power consumption:MAX 0.15W 12V,0.12A
Lens interface:C/CS口
Net weight:180g
Gross weight:400g
Camera size:74*74*35mm
Packaging size:160*100*80mm
Questions Solutions:
LCD no video or flicker
1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.
2.Check lens cover. Increase the lighting.
LCD have black bar Image warp
1.change resolution of LCD
2.change resolution of camera
Have dirty spot
1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser
