Custom CNC machining 13MP 1080P HDMI VGA Industrial Video Microscope Camera 1-130X Zoom C Mount Lens Remote Control For PCB Phone Repair Soldering
Custom CNC machining 13MP 1080P HDMI VGA Industrial Video Microscope Camera 1-130X Zoom C Mount Lens Remote Control For PCB Phone Repair Soldering
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.

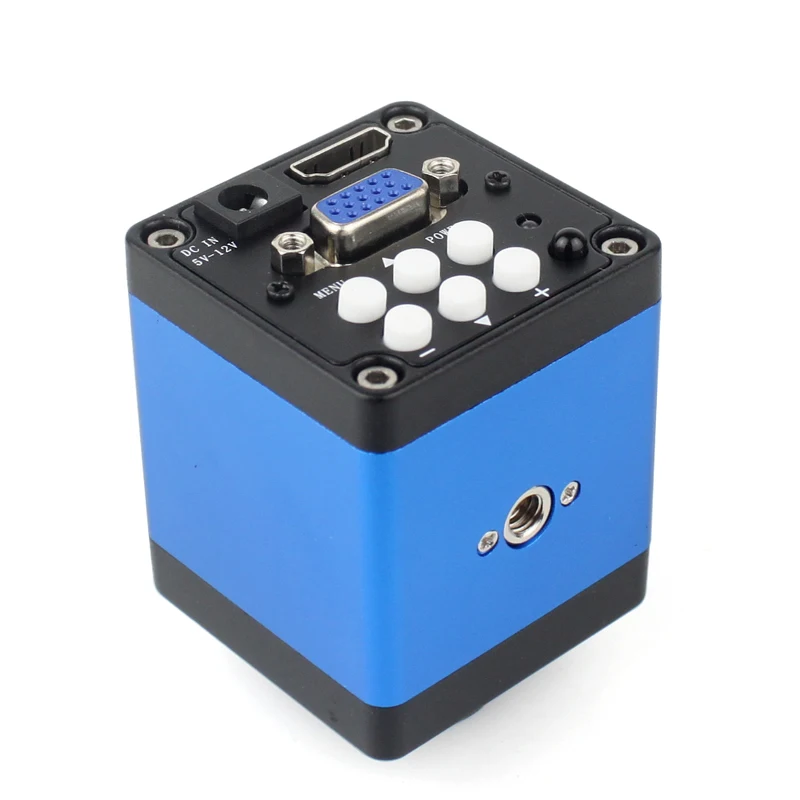

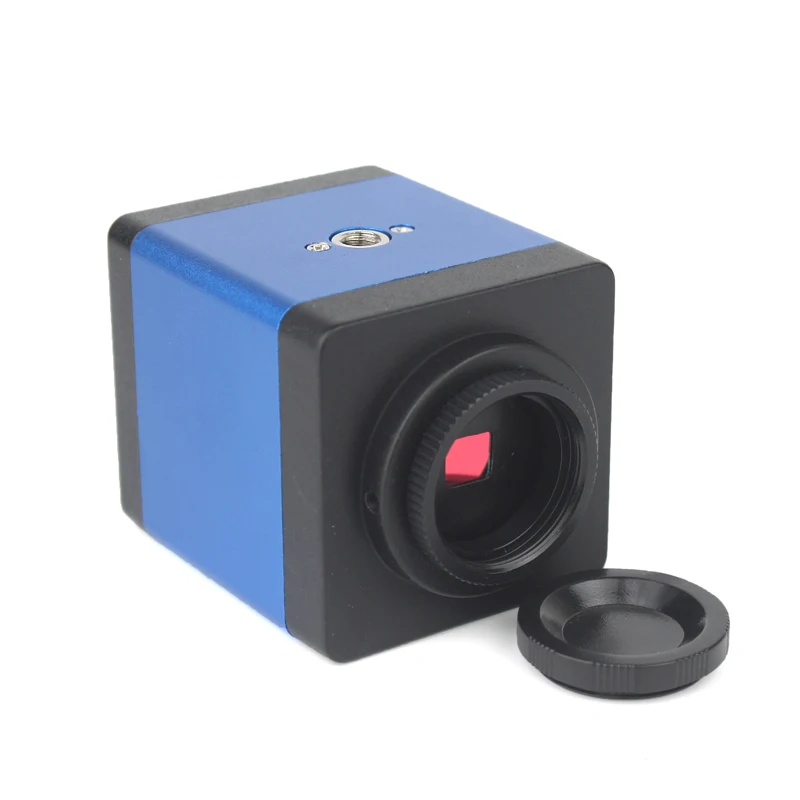

13MP 60Fps HDMI VGA
Feature:
The sensor: gc2053
Overall dimension: 75*50*50mm
Video Interface:HDMI VGA
Lens:CS
Working voltage:12V
Working current:150mA
Optical format:1/3"
Pixel size:2.8um*2.8um
Pixel array:13MP
TV Lines:1200TVLine
FPS of max image:30FPS
Scanning mode:progressive
Shutter mode:electronic shutter
Dynamic range:65dB
S/N radio:45dB
OSD language:English/Chinese
AWB mode:One time white balance / manual / auto
HDR:Adjustable
Cross line:Support 8 colors / line width adjustable
B/W:allow
Negative:allow
Mirror flip:Support left / right / up / down
Freeze:allow
Compare:allow
Manual set bright,contrast,sharp,saturation:allow
Output of display resolution: HDMI：16:9, 4:3 VGA:1920*1080/1600*900/1440*900/1366*768/1280*1024/1280*720/1024*768/800*600(Supports various displays on the market)
1X-130X C-MOUNT Lens:
Working distance: 50mm-1000mm
zoom ratios: 1 : 15
Magnification Power by 0.13- 2X (about 1 - 130X on the display)
view field of Max multiple : 4.2mm*2.4mm
view field of Min multiple : 130mm*70mm
Size: 30mm(diameter) * 99mm(length)
Weight: 195g
56 bright white LED bulbs
100,000 hours of life
Intense and focused shadow-free illumination
The brightness of 0-100%Adjustable,high brightness
Variable intensity control
Power input: 90-260V, 50-60HZ
Suit for the dia of the lens: 30mm-63mm
Working distance:100mm

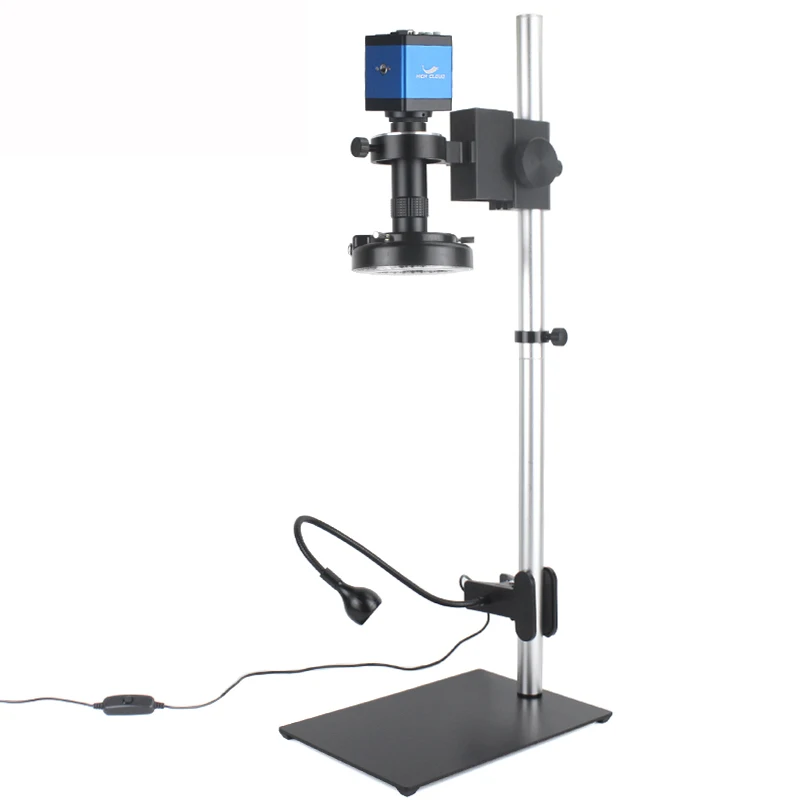

Packing List:
A set
1x Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
1 x LED ring light
1 x 130X zoom lens

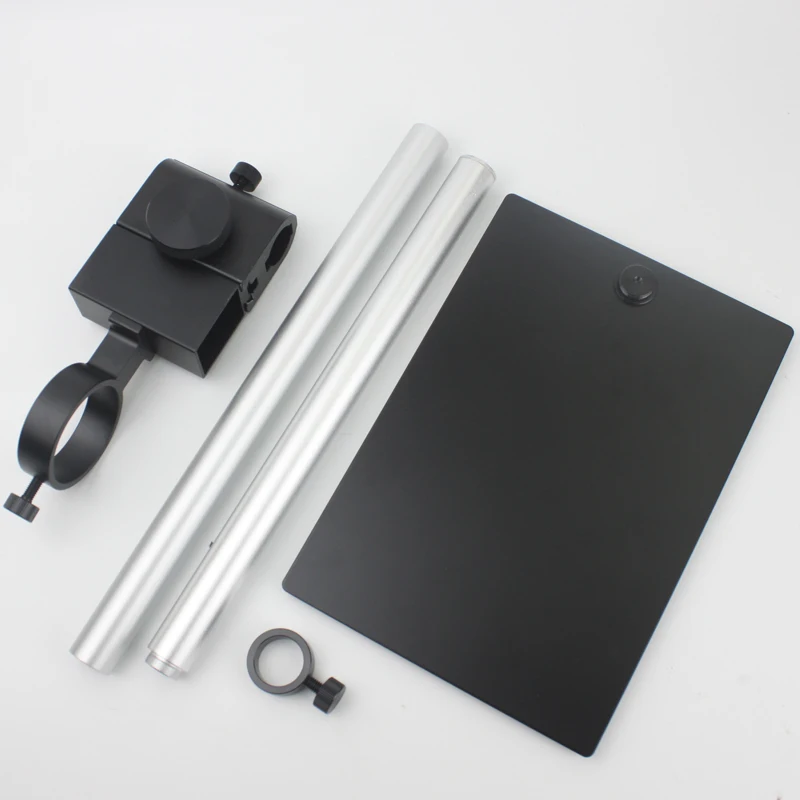

1 x Microscope bracket
1 x work mat
1 x clip-on led light
B set
1 x LED ring light
1 x 130X zoom lens
1 x Microscope bracket
1 x work mat
1 x clip-on led light

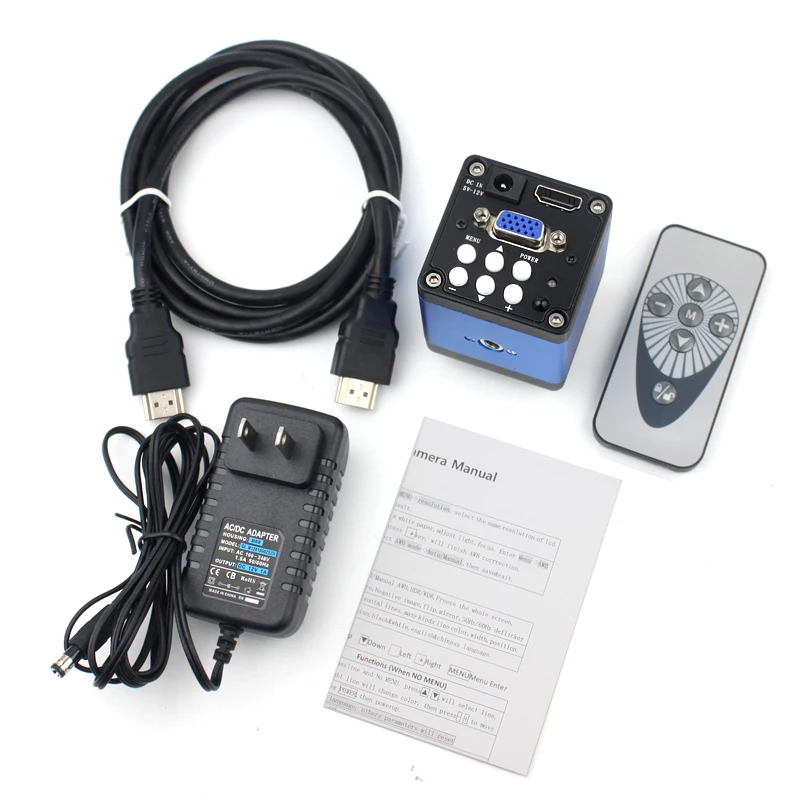

C set
1x Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines

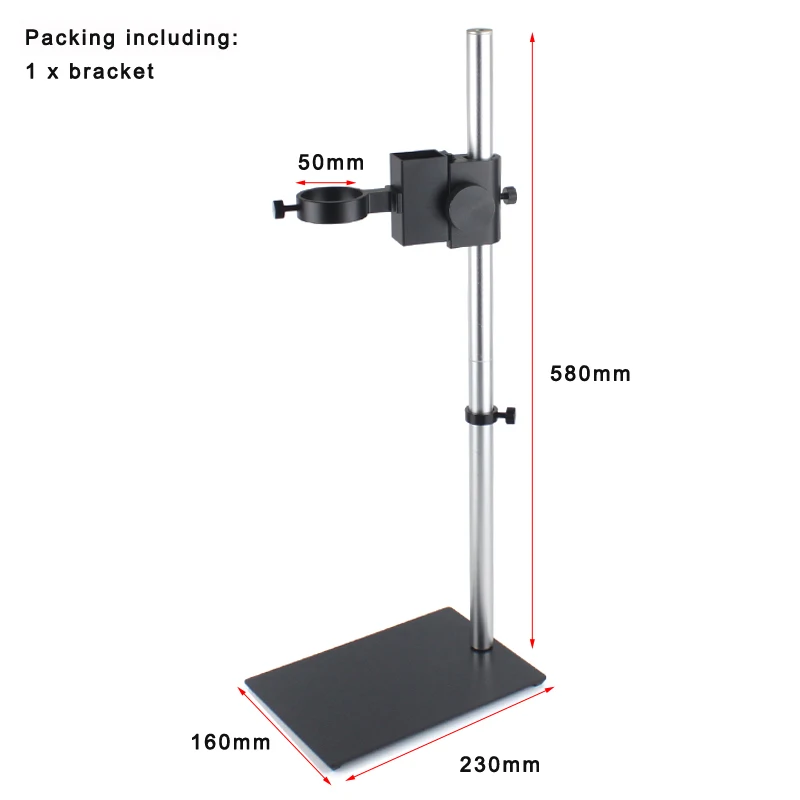

D set
1 x Microscope bracket
E set
1 x 130X zoom lens
