Custom CNC machining 1080P HDMI USB Digital Video Monocular Microscope Camera TF Storag130X Zoom C-Mount Lens For Phone PCB Soldering Repair Tools
Custom CNC machining 1080P HDMI USB Digital Video Monocular Microscope Camera TF Storag130X Zoom C-Mount Lens For Phone PCB Soldering Repair Tools
Couldn't load pickup availability
Machining Equipment:
3-5 axis cnc machining center / composite cnc machine / Machining Center / CNC Lathes / Grinding Machines / Milling Machines / Lathes / Wire-cuts / Laser Cuts / CNC Shearing Machines / CNC Bending Machines / etc.
Materials :
Aluminum Alloy:
5052 /6061/ 6063 / 2017 / 7075 / etc.
Brass Alloy:
3602 / 2604 / H59 / H62 / etc.
Stainless Steel Alloy:
303 / 304 / 316 / 412 / etc.
Steel Alloy:
Carbon Steel / Die Steel / Spring Steel etc.
And Other Special Materials
Surface Treatment:
Anodize, Chromate, Electrolytic Plating, Nickel Plating, Galvanize, Tempered, Paint, Powder Coating, Polish etc.,
Inspection:
three-coordinate measuring machine / Tool Microscope can measure up to 300mmX x 175mmY x 220mmZ
File Formats:
Solid Works,Pro/Engineer, AutoCAD(DXF,DWG), PDF,TIF , IGS , STP etc.
Feature:
High Quality, High Resolution, Clear Images
1/2.8"
1080P 1920*1080 Video Camera
HDMI USB Video Model
Added TF card and U disk picture and video storage functions.

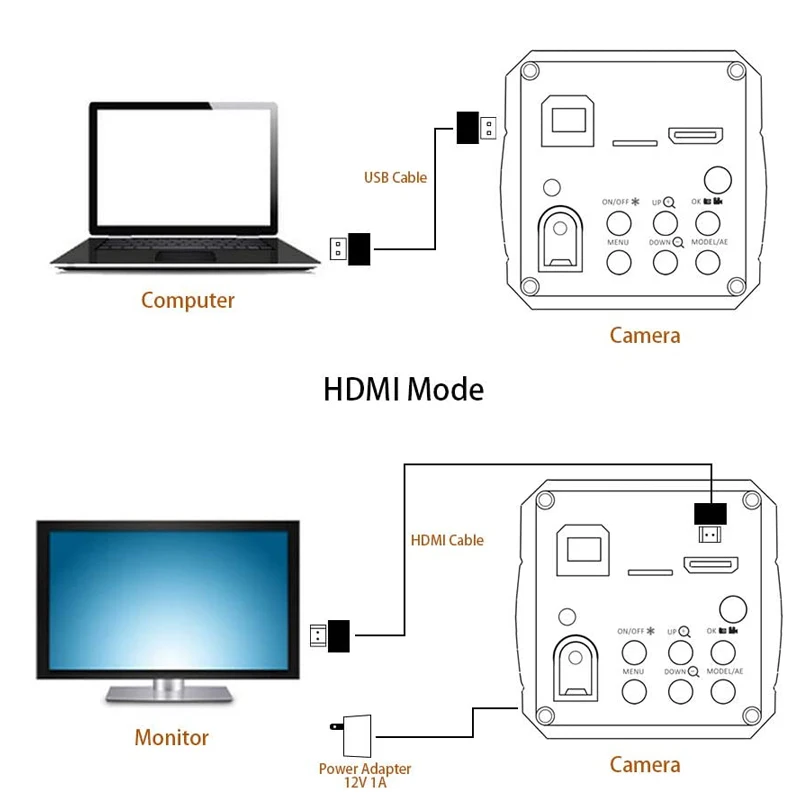

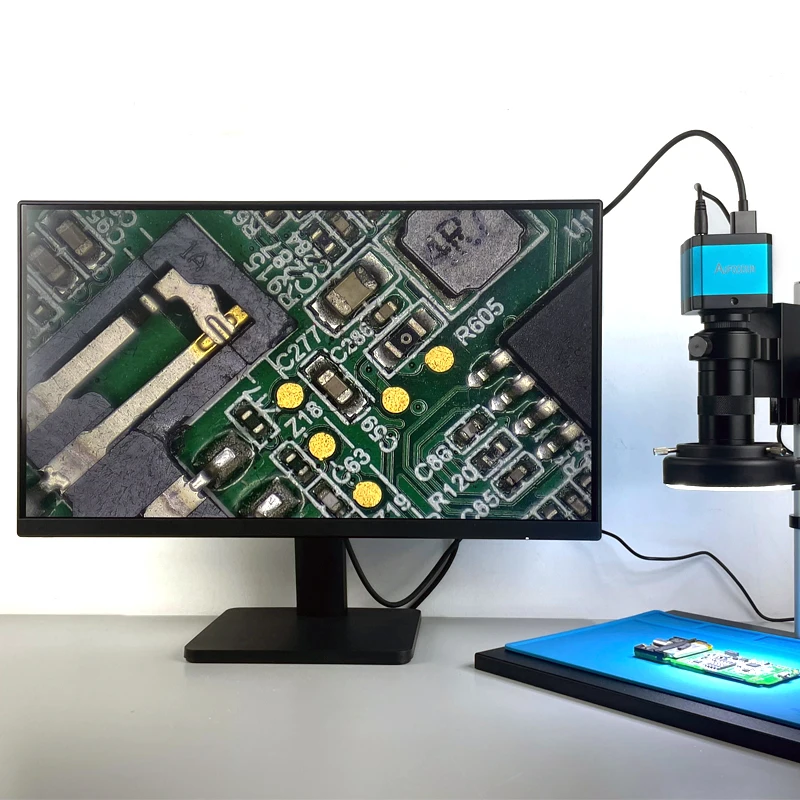

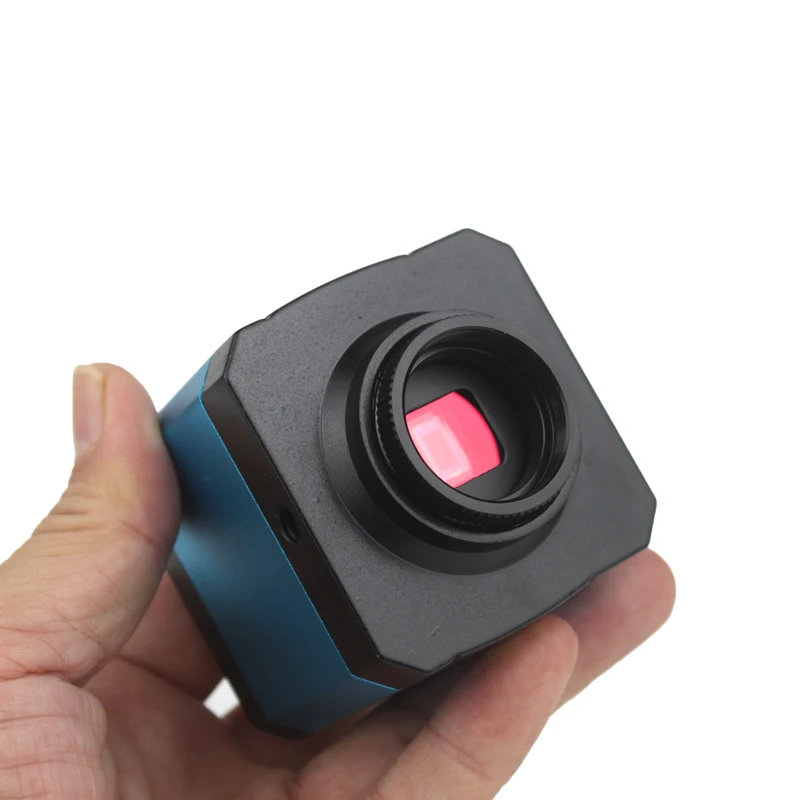

Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.Can also connect to PC.
Optical format:1/2.8 inch

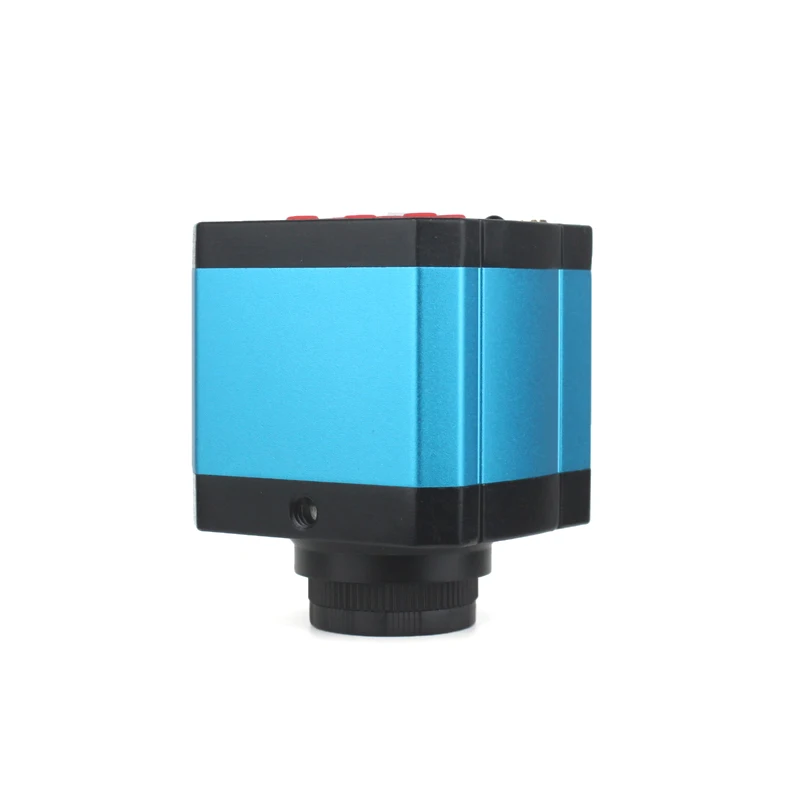

Housing: Aluminium alloy

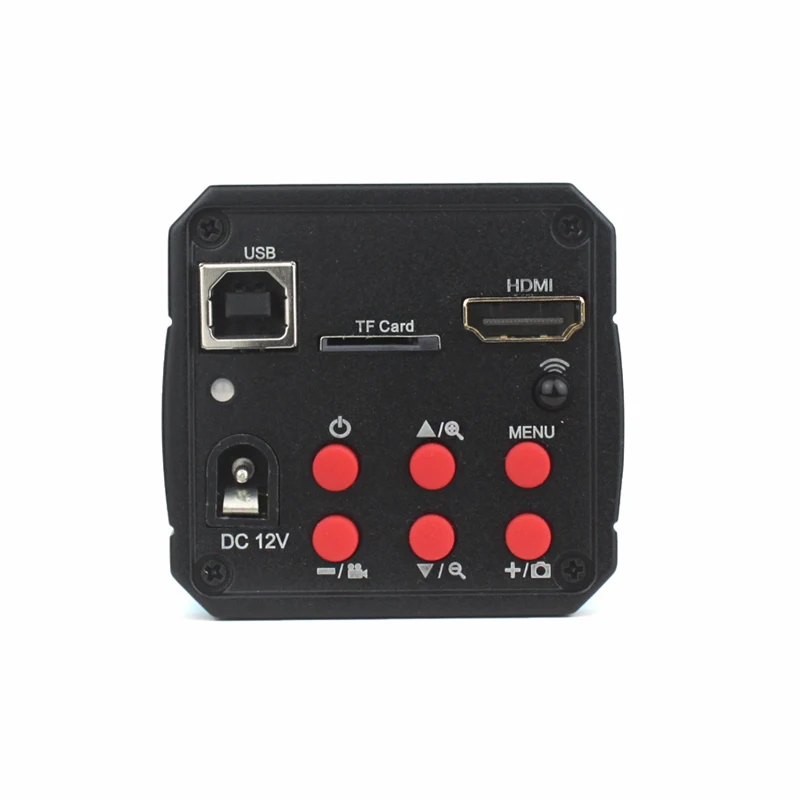

Interface:HDMI(Type A).USB(Type B).TF Card,USB Flash Drive
Image resolution:1080P
Video record resolution:1080p@60FPS
HDMI resoltion:1920*1080p 60FPS
HDMI scale:Support 4:3,16:9, screen
USB2.0(Drive free):1920*1080@30FPS1280*720@30FPS640*480@30FPS
TF card:MAX 64GB
USB Flash Drive:MAX 128GB
TF card or U disk format
Digital Zoom:1X-4X
White balance:One key white balance,Manual balance
AWB:WB color correction/Auto/Manual
Sharpness:1-5,Adjustable
Sharpness: 0-10,Adjustable
Noise reduction: 0-10,Adjustable
Avoid flicker: Auto or 50Hz 60Hz
Color:Black and White / color
R.G.B value setting independent
Exposure:Auto/Manual.AE value can set
Cross lines:8lines.Can set color& width& position
Scale mark lines:2lines.
Mirror:Horizontal vertical mirror
Language:English/simplified Chinese
IR remoter:Support
Power supply:12V 1A xc
130X C-MOUNT Lens:
Magnification Power by 0.12 - 2X (about 8X - 130X on the display)
Work distance: 50-155mm
Visual field :2.4mm-32mm
Size: 115mm(L) * 40mm(DIA)
Weight: 210g
Note: Please refer to the color SKU picture

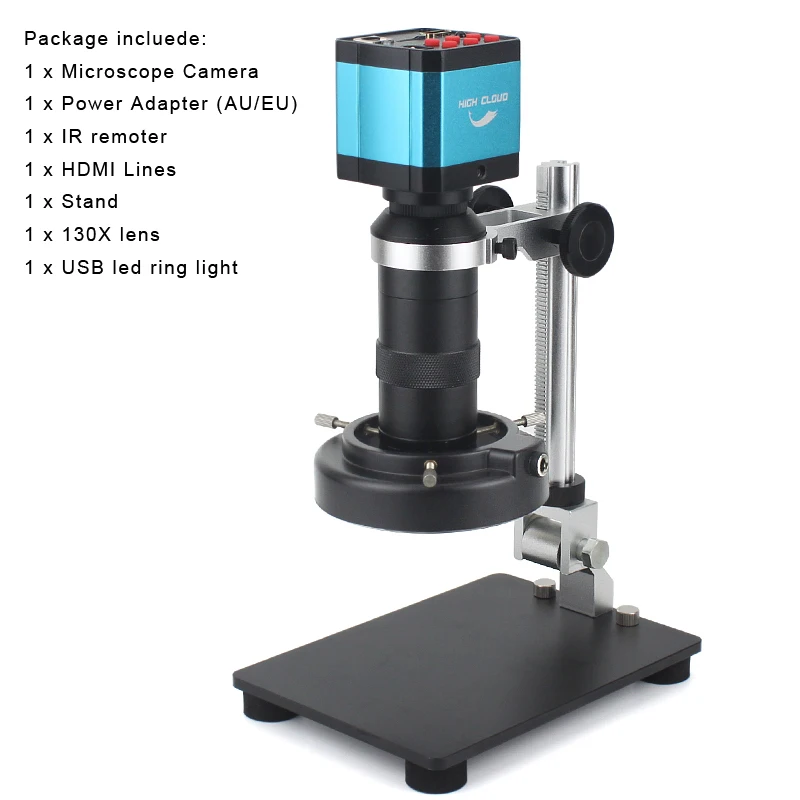

A: Package incluede
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
1 x Stand
1 x 130X lens
1 x USB led ring light

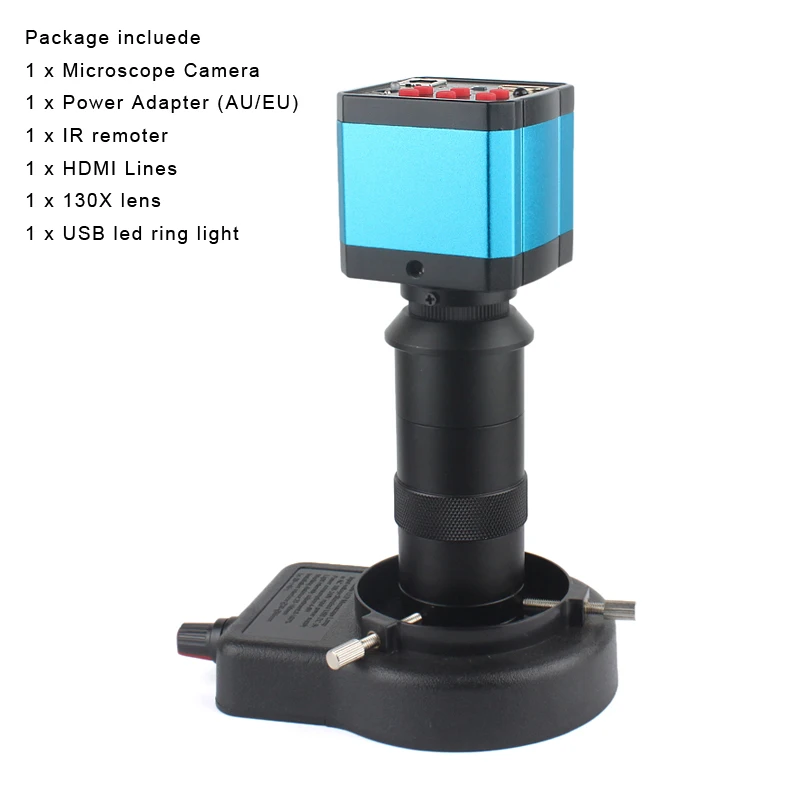

B: Package incluede
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
1 x 130X lens
1 x USB led ring light
C: Package incluede
1 x Stand
1 x 130X lens
1 x USB led ring light
D: Package incluede
1 x Stand

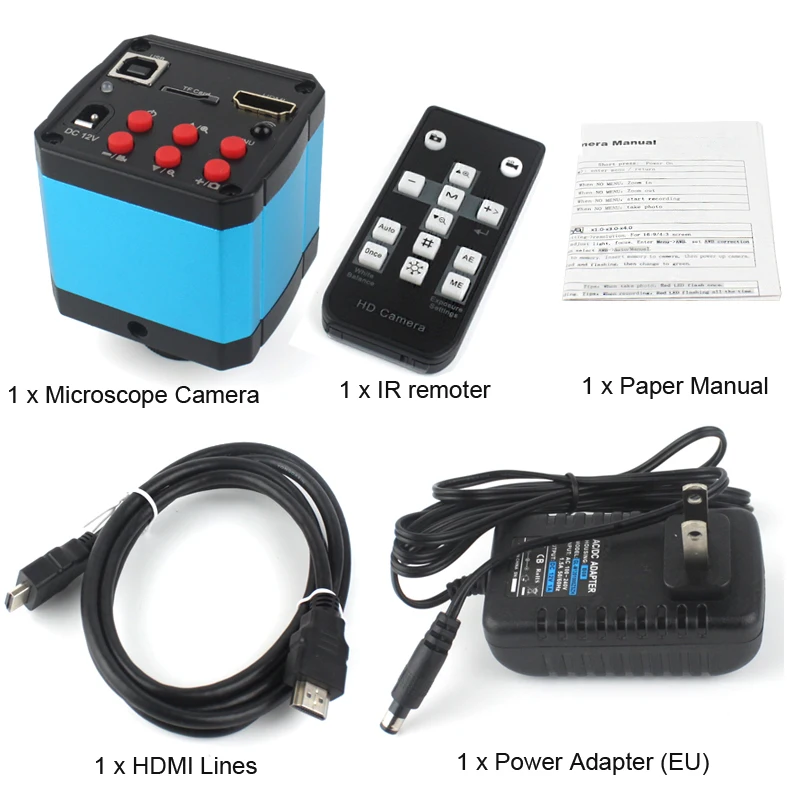

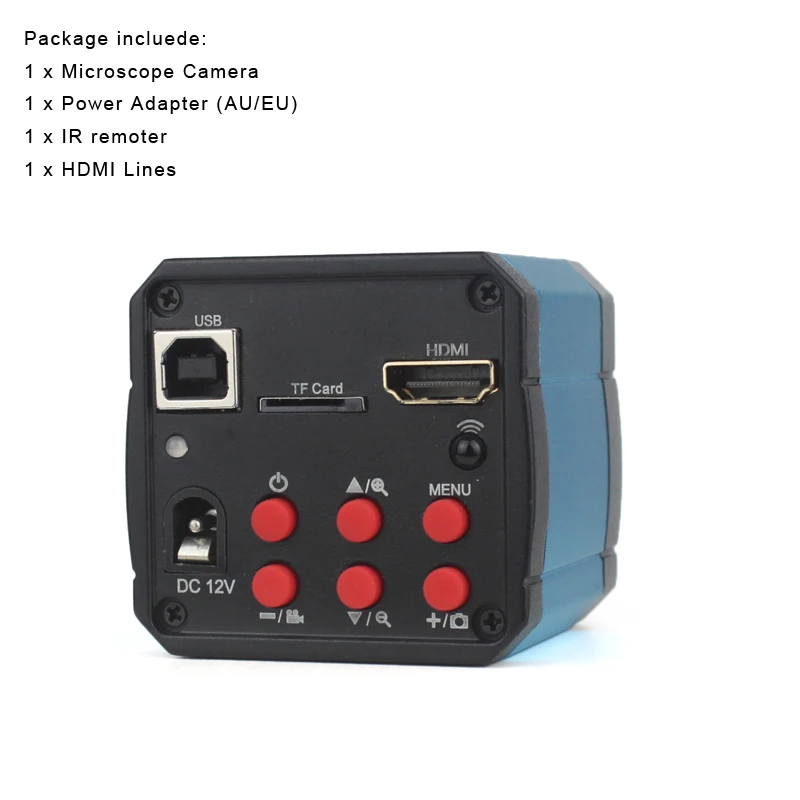

E: Package incluede
1 x Microscope Camera
1 x Power Adapter (AU/EU)
1 x IR remoter
1 x HDMI Lines
