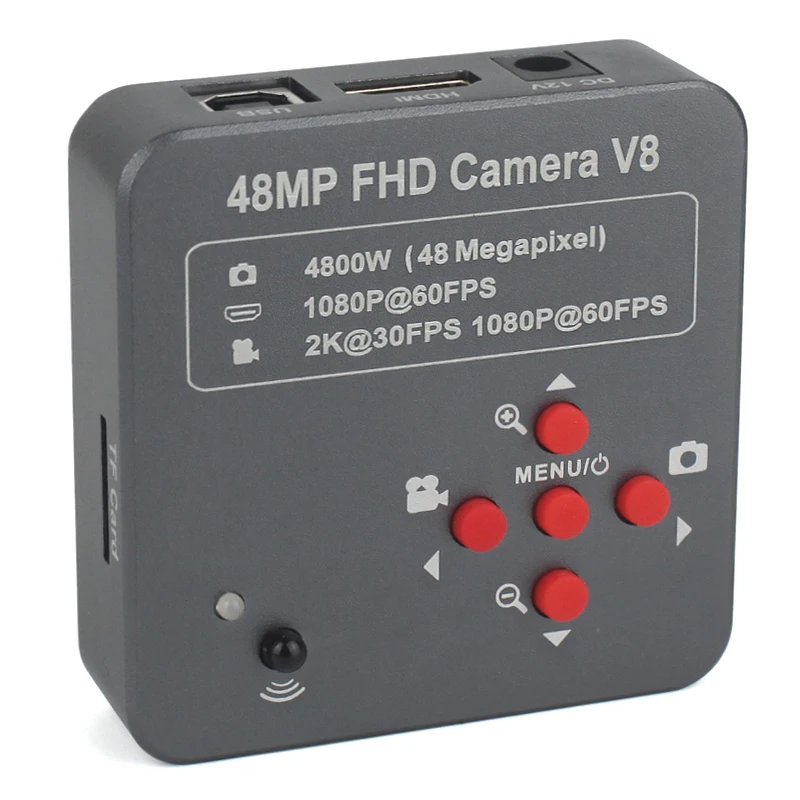

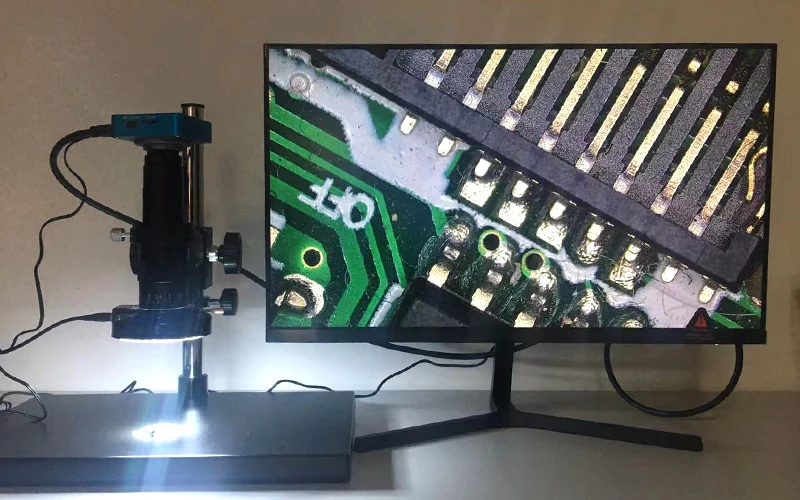

Custom CNC machining 1080P 60FPS 2K 4800W 48MP HDMI USB Industrial Electronic Digital Video Microscope Camera Magnifier For Phone PCB Repair

Module:HD216

Sensor :Panasonic CMOS

Optical format: 1/2.3 inch

pixel size: 1.335μm x1.335μm

Interface: HDMI(Type A).USB(Type B).TF Card

Image resolution: 48MegaPixel

Video record resolution: 2K@30FPS 1080p@60FPS

HDMI resolution: 1920*1080p 60FPS

Can output with USB at the same time

HDMI scale:Support 4:3,16:9,16:10 screen

USB2.0(Drive free): 1920*1080@30FPS 1280*720@30FPS 640*480@30FPS

Can output with HDMI at the same time

TF card:MAX 64GB

AWB:WB color correction/Auto/Manual

R.G.B value setting independent

Exposure:Auto/Manual.AE value can set

Cross lines:8lines.Can set color& width& position

Scale mark lines: 2lines.

Dotted lines:2lines.Can set color& width& position

Sharpness Contrast Color gain: Support

Mono Negative: Support

Mirror:Horizontal vertical mirror

Language:English/simplified Chinese

Digital Zoom: Support

IR remoter:Support

Voltage in:DC 12V 55-21mm size

Power consumption:MAX 0.15W 12V,0.12A

Lens interface: C/CS port

Net weight: 180g

Gross weight: 400g

Camera size: 74*74*35mm

Packaging size: 160*100*80mm

Questions Solutions:

LCD no video or flicker

1.Check power supply. Check green LED be onlight. Press PowerKey to Up it.

2.Check lens cover. Increase the lighting.

LCD have black bar Image warp

1.change resolution of LCD

2.change resolution of camera

Have dirty spot

1.Check camera and lens, find the dust, then clean using absolute ethyl alcohol or cleanser

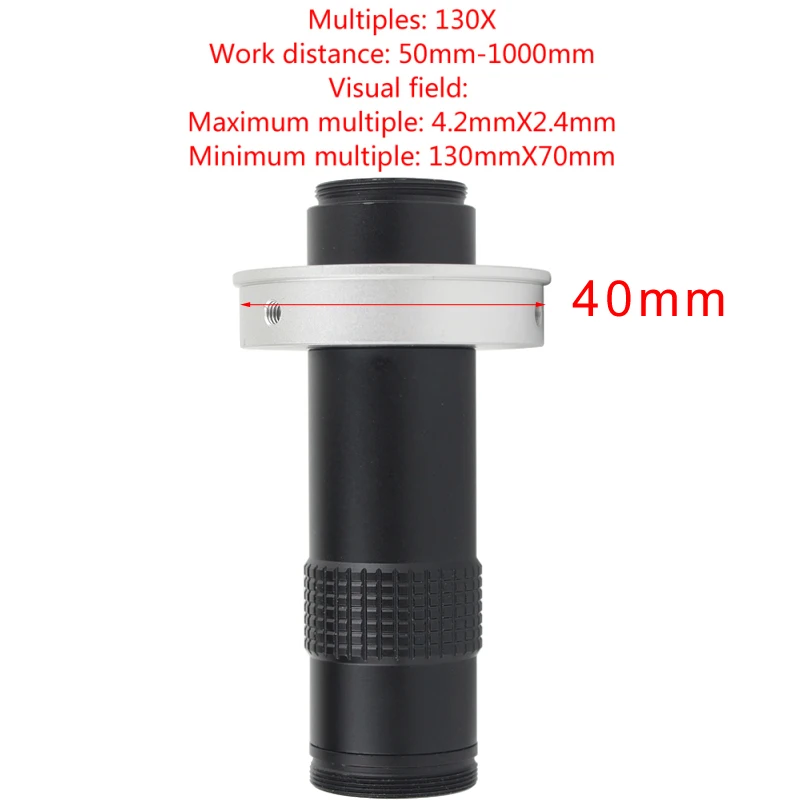

New 130x Feature:

Working distance: 50mm-1000mm

zoom ratios: 1 : 15

Magnification Power by 0.13- 2X (about 1 - 130X on the display)

view field of Max multiple : 4.2mm*2.4mm

view field of Min multiple : 130mm*70mm

Size: 30mm(diameter) * 99mm(length)

Weight: 195g

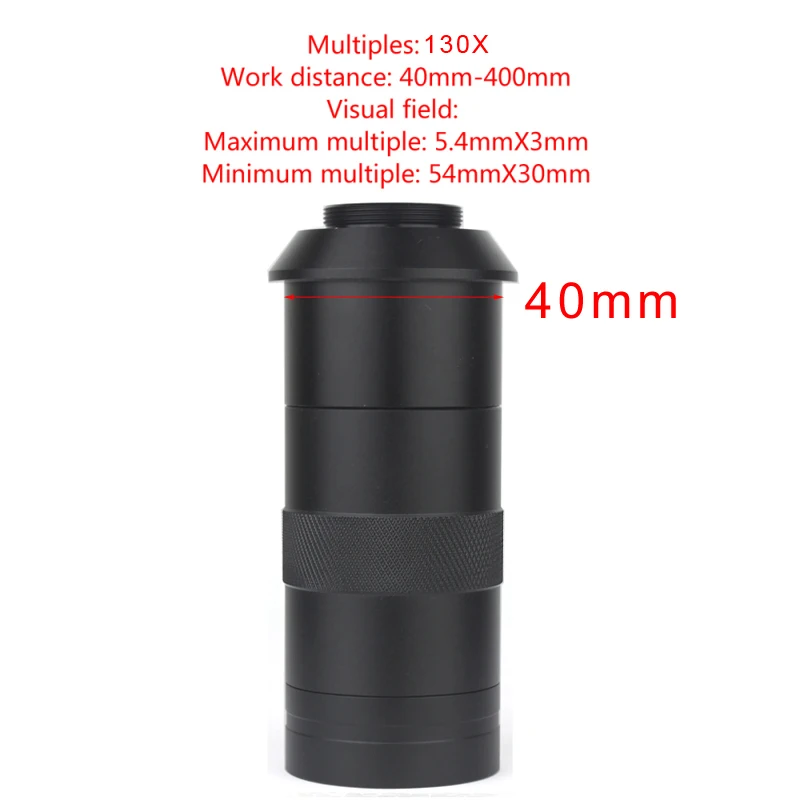

Old 130x Feature:

Zoom c-mount Lens

Working distance: 40mm-200mm

Visual field: 2.4mm-32mm

Focal length: 40

Interface: C CS mount

Install diameter: 40mm

Magnification Power by 0.12 - 2.2X (about 8X - 130X on the display)

Size: 115mm(L) * 40mm(DIA)

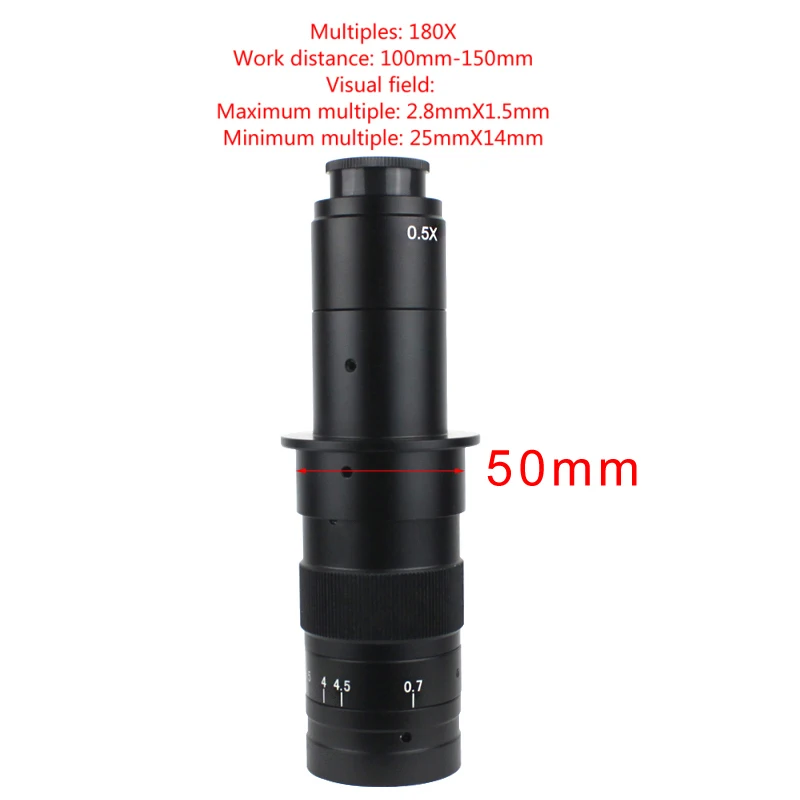

180x Fature:

Working distance: 90mm-150mm

Zoom c-mount Lens

0.5X/1X/0.35X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 120X 180X or 300X on the display)

Size: 168mm(L) * 50mm(DIA)

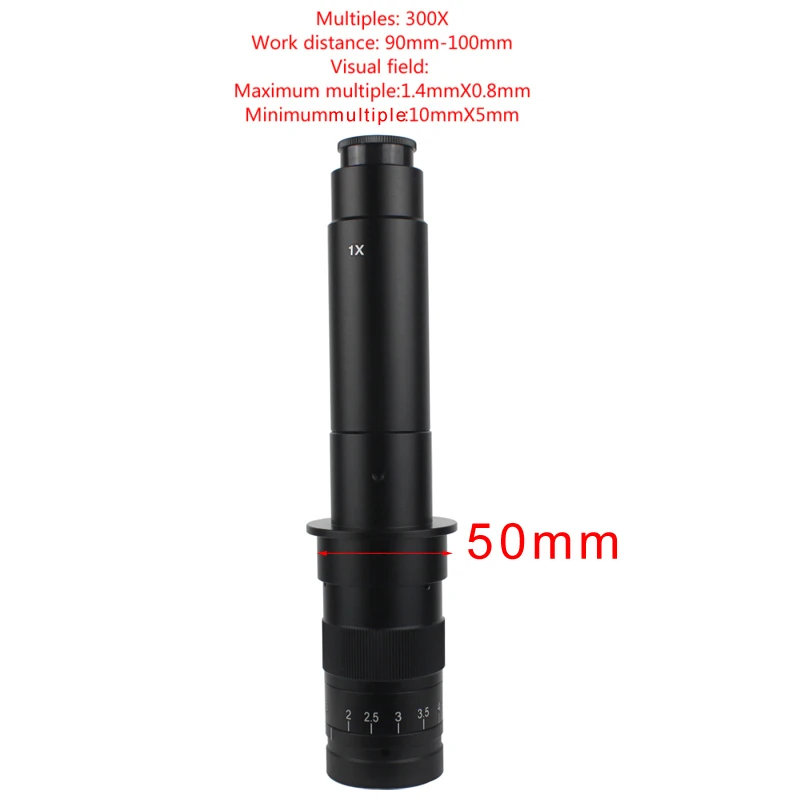

300x Feature:

Working distance: 90mm-100mm

Zoom c-mount Lens

0.5X/1X/0.35X C-mount adapter

zoom ratios: 6.5:1

Objective Magnification Power by 0.7 - 4.5X(about 10 - 120X 180X or 300X on the display)

Size: 245mm(L) * 50mm(DIA)

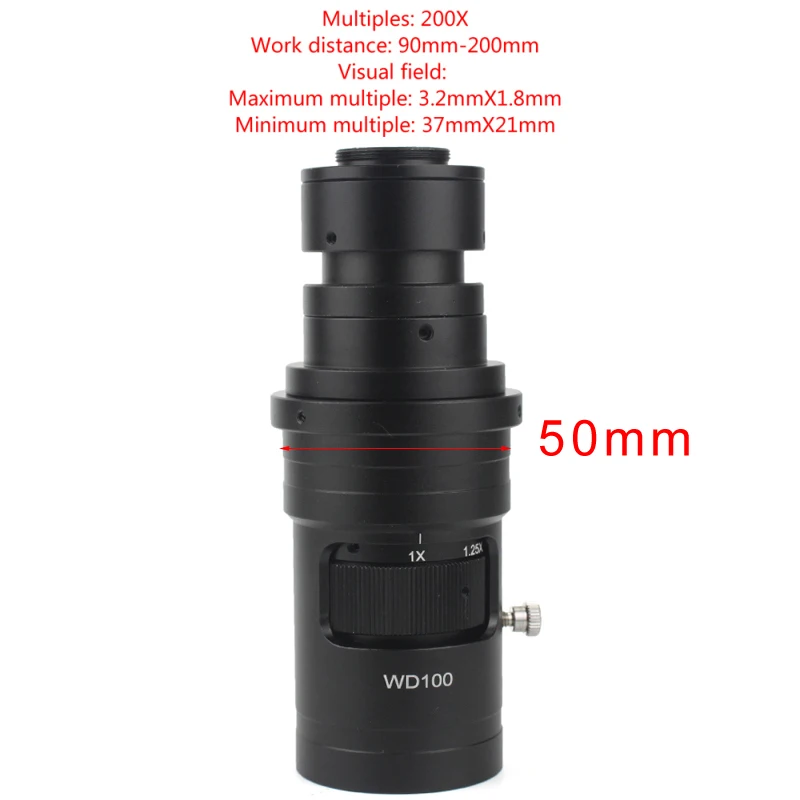

200x Feature:

200X Working distance: 100mm -175mm

Connector:CS C mount

Zoom: continouasly variable zoom

Objective Magnification:0.7X - 5X(about 28 - 200X on the display)

Eyepiece lens adapter: 0.4X/1X

Fixed position: 50mm

Locking: 0.7X - 5X Locking

Thread: 42mm

Auxiliary Objective Lens:0.35X, 0.5X, 2X,1X (optional)

Size:132mm(L) * 55mm(DIA) / 175mm(L) * 55mm(DIA)

56 LED Adjustable Compact Microscope Ring Light

Provides intense and focused shadow-free illumination

56 bright white LED bulbs

Lighting direction changeable

Variable intensity control

Intense and focused shadow-free illumination

100,000 hours of life

Power input: 100-240V, 50-60HZ, auto switching

Inside diameter of the ring light: 1.0" (27mm)

Overall outside diameter: 1.77" (45mm)

Working Distance: 27mm-160mm

Package include:

1 x Microscope Camera

1 x Power Adapter (AU/EU)

1 x IR remoter

1 x Usb Lines

1 x HDMI Lines

1 x Paper Manual

Optional accessories include:

1 x C-MOUNT Lens(130X or 180X or 300X 200X)

1 x 56 LED Adjustable Microscope Ring Light
